Component Location - X5

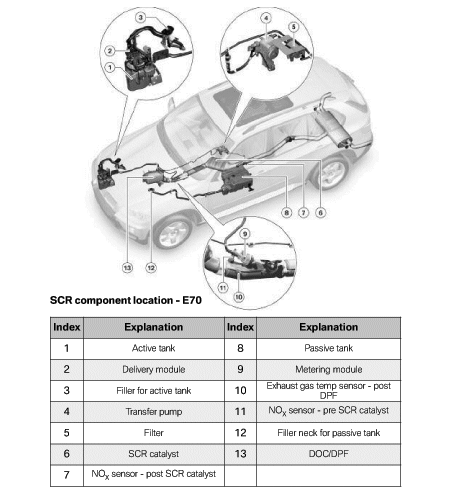

On the X5, the active reservoir, including the delivery unit, is located on the right-hand side directly behind the front bumper panel. The passive reservoir is located on the left in the underbody, approximately under the driver's seat. The transfer unit is installed on the right in the underbody. Both fillers are located in the engine compartment.
