Break Out Box Overlay Identification (12 47 06)

Publication date: 2010-07-02
Reference number: 12 47 06

BREAK OUT BOX OVERLAY IDENTIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 12 47 06, Date of Issue: July 2010

BMW:	E60 (5 Series) 525i, 530i with N52 and N52KP engine; E60 (5 Series) M5; E63 and E64 (6 Series) M6 Coupe and Convertible; E70 X5 3.0 with N52 KP; E83 X3 3.0 with N52 KP; E85 Z4 2.5 and 3.0 with N52KP engine; E90, E91 and E92 (3 Series) All models
GROUP:	12 - Engine Electrical Systems

Superceded Bulletin(s): SI B12 47 06, Date of Issue: November 2006

NOTE: This Service Information bulletin supersedes SI B12 47 06 dated November 2006 .

SUBJECT

Break Out Box Overlay Identification

INFORMATION

The three illustrations below will identify the seven sub connectors within the two DME main connectors. Using Illustration #1 will determine the proper location of the sub connectors within the main connectors. Illustrations # 2 or # 3 (depending on the model) will identify the sub connector locations on BMW Special Tool 61 2 420/422.

Special Tool 61 2 420/422, Break Out Box overlays, are used in conjunction with adaptor cable 12 7 420/421, 612 420/421 and break out box 61 4 380/381. These special tools are utilized on all vehicles equipped with the following DME variants and the models described above:

MSS65
MSV70
MSD80
MSV80
MSD81
MSS60 (E9x M3)

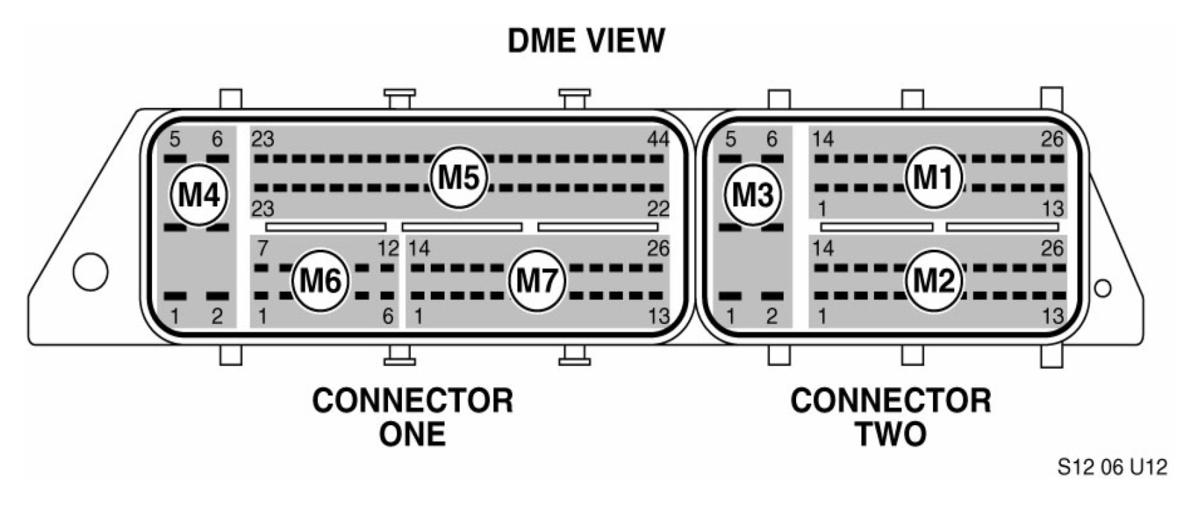

ILLUSTRATION #1

Fig 1: Proper Location Of Sub Connectors Within Main Connectors

Illustration #1 Training Material Designation	Illustration #2 ETM Schematic Designation All models except M3	Illustration #3 ETM Schematic Designation M3 only
Sub connector M1	X60001 - 26 pin connector	X60101 - 26 pin connector
Sub connector M2	X60002 - 26 pin connector	X60102 - 26 pin connector
Sub connector M3	X60003 - 6 pin connector	X60103 - 6 pin connector
Sub connector M4	X60004 - 6 pin connector	X60104 - 6 pin connector
Sub connector M5	X60005 - 44 pin connector	X60105 - 44 pin connector
Sub connector M6	X60006 - 12 pin connector	X60106 - 12 pin connector
Sub connector M7	X60007 - 26 pin connector	X60107 - 26 pin connector

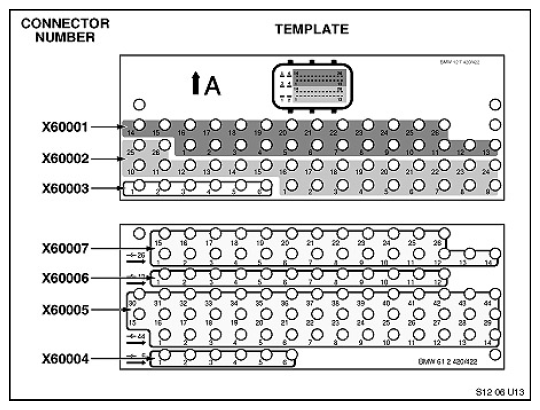

ILLUSTRATION #2 - ALL MODELS EXCEPT E9X M3 WITH S65 ENGINE AND MSS60 DME

Fig 2: Sub Connector Locations On BMW Special Tool 61 2 420/422

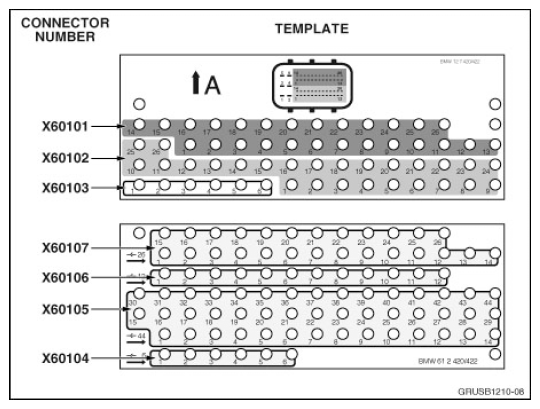

ILLUSTRATION #3 - E9X M3 WITH S65 ENGINE AND MSS60 DME ONLY

Fig 3: Sub Connector Locations On BMW Special Tool 61 2 420/422

WARRANTY INFORMATION

For information only.
