DIESEL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 14 08, Date of Issue: December 2008

BMW:	M57Y
GROUP:	Tools and Equipment

SUBJECT

Diesel Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Gauge

Order PN 83 30 0 495 219

Cartool PN 116 300

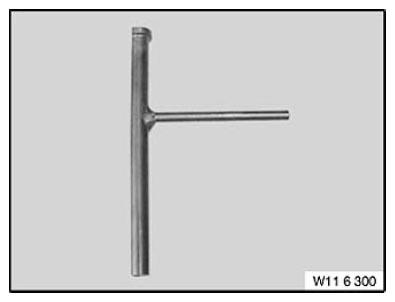

Fig 1: Gauge

This tool is used for adjusting the clearance of the partial-vacuum canister on the turbocharger. For more details, refer to the repair instructions for Series M57TU535d, section 11 65 075.

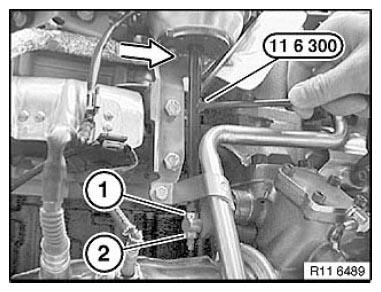

Fig 2: Adjusting Clearance Of Partial-Vacuum Canister On Turbocharger

Locking Plug

Order PN 83 30 0 493 235

Cartool PN 116 320

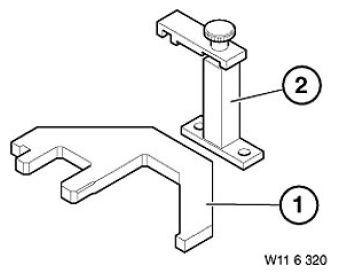

Fig 3: Locking Plug

116 321 (83 30 0 493 236) Fixture
116 322 (83 30 0 493 288) Retainer for securing the fixture to the cylinder head.

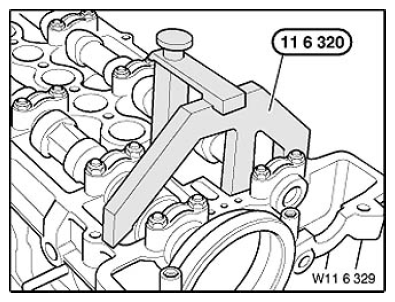

This tool is used for disconnecting the camshaft when adjusting the valve timing. For more details, refer to repair instructions for the 3 Series E46, section 11 31 001.

Fig 4: Disconnecting Camshaft

Guide Drifts

Order PN 83 30 0 493 250

Cartool PN 116 330

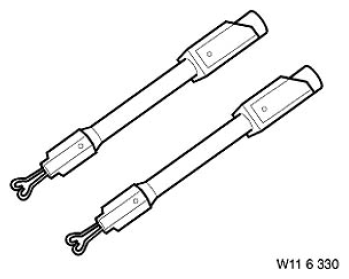

Fig 5: Guide Drifts

This tool is used for installing connecting rods with pistons. The guide drift 116 330 has been designed in such a way that damage is not possible when the connecting rod is installed with the piston. For more details, refer to repair instructions for the 3 Series E46, section 11 25 530.

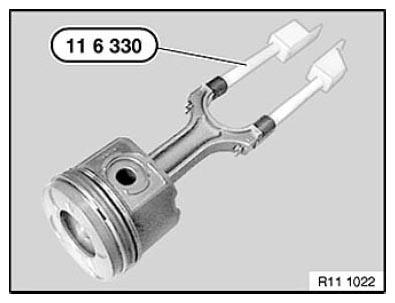

Fig 6: Guide Drifts Installed On Connecting Rod

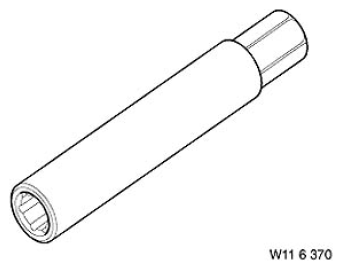

Extraction tool

Order PN 83 30 0 493 248

Cartool PN 116 370

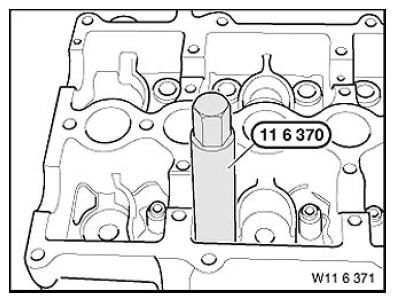

Fig 7: Extraction Tool

This tool is used for removing the valve stem seal. For more details, refer to repair instructions for the 3 Series E46, section 11 34 560.

Fig 8: Removing Valve Stem Seal

Extractor

Order PN 83 30 0 493 232

Cartool PN 135 190

Fig 9: Extractor

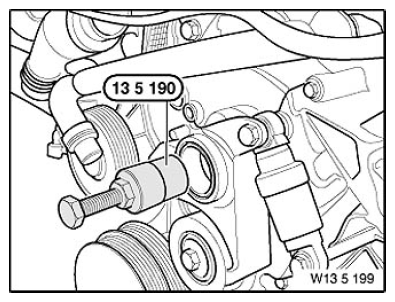

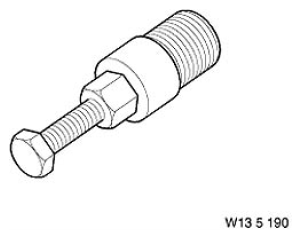

This tool is used for removing the sprocket wheel from the injection pump, VP44. For more details, refer to repair instructions for the 3 Series E46, section 13 51 000.

Fig 10: Injection Pump Sprocket Wheel Extractor

Test Probe

Order PN 83 30 0 493 387

Cartool PN 110 236

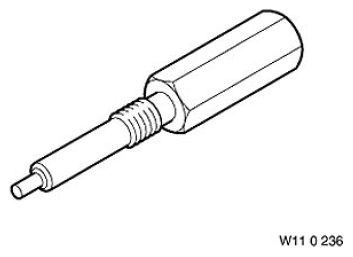

Fig 11: Test Probe

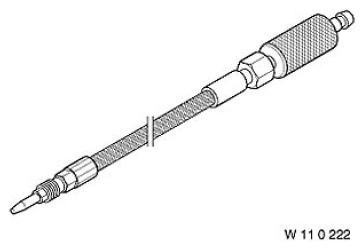

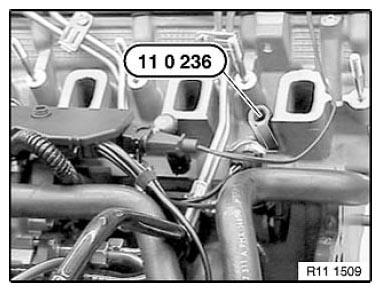

This tool is used for the DIS pressure sensor or compression recorder 110 221, for measuring compression pressure in conjunction with test probe 110 222. For more details, refer to repair instructions for the 3 Series E46, section 11 00 039.

Fig 12: Test Probe Installation

Holding Fixture

Order PN 83 30 0 493 377

Cartool PN 116 460

Fig 13: Holding Fixture

116 461 (83 30 0 493 392) Brace
116 462 (83 30 0 493 393) Support
116 463 (83 30 0 493 394) Retaining bolts M8 (qty. 2)

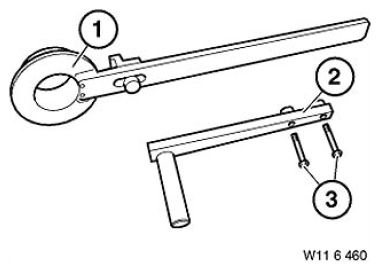

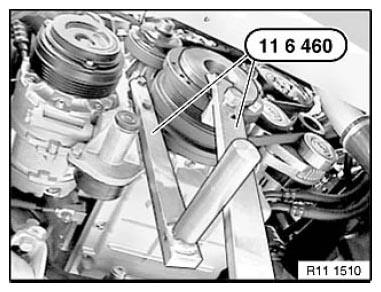

This tool is used for the vibration damper when loosening and tightening the central bolts. For more details, refer to repair instructions for the 5 Series E39, section 11 23 010.

Fig 14: Holding Vibration Damper

Slip Bush

Order PN 83 30 0 493 378

Cartool PN 116 470

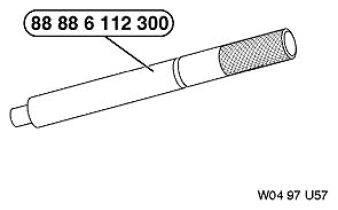

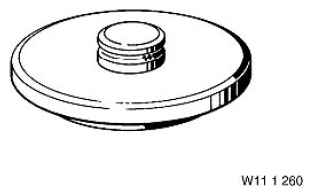

Fig 15: Slip Bush

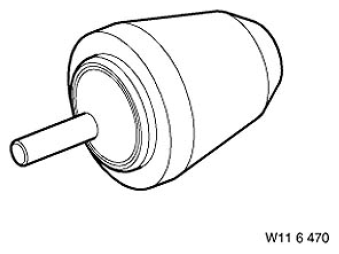

This tool is used for installing the shaft seal in the lower timing-case cover. For more details, refer to repair instructions for the 5 Series E39, section 11 14 141.

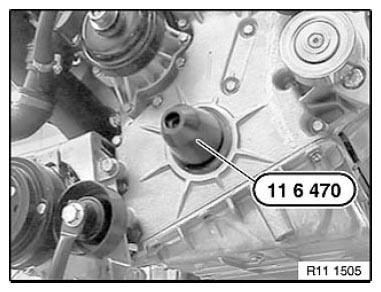

Fig 16: Slip Bush Installation

Adapter

Order PN 83 30 0 493 380

Cartool PN 116 480

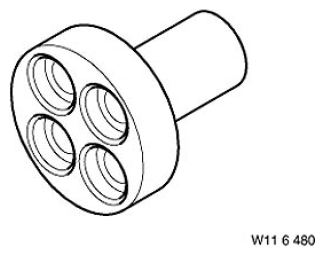

Fig 17: Adapter

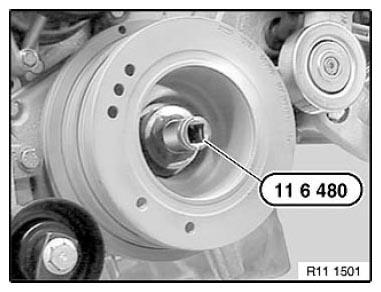

This tool is used for turning the engine at the crankshaft hub (vibration damper) when adjusting the valve timing. For more details, refer to repair instructions for the 5 Series E39, section 11 31 005.

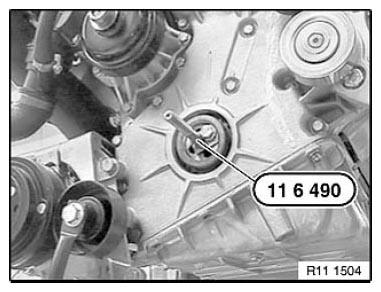

Fig 18: Adapter On Crankshaft Hub

Installer

Order PN 83 30 0 493 381

Cartool PN 116 490

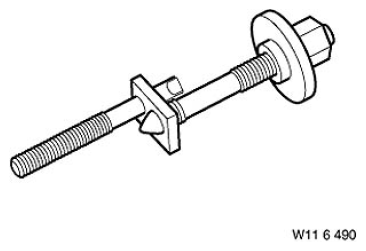

Fig 19: Installer

This tool is used for inserting the shaft seal into the timing-case cover in conjunction with insertion sleeve 115 110. For more details, refer to repair instruction for the 5 Series E39, section 11 14 141.

Fig 20: Seal Installer In Timing-Case Cover

Adapter Kit

Order PN 83 30 0 493 674

Cartool PN 135 230

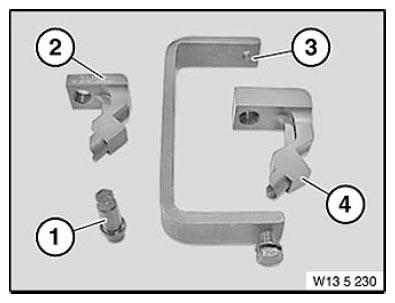

Fig 21: Adapter Kit

135 231 (83 30 0 493 675) Retaining bolt
135 232 (83 30 0 493 676) Adapter
135 233 (83 30 0 493 678) Extension (for M67)

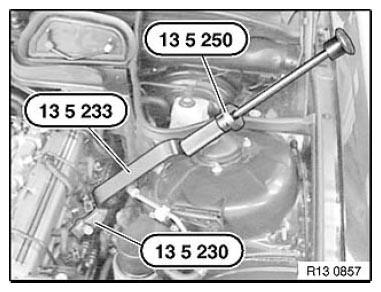

This tool is used in conjunction with extractor 135 250 for removing tight injectors. For more details, refer to repair instructions for the 3 Series E46, 5 Series E39, and 7 Series E38, section 13 53 315.

Fig 22: Removing Tight Injector

Assembly Sleeves

Order PN 83 30 0 493 582

Cartool PN 118 140

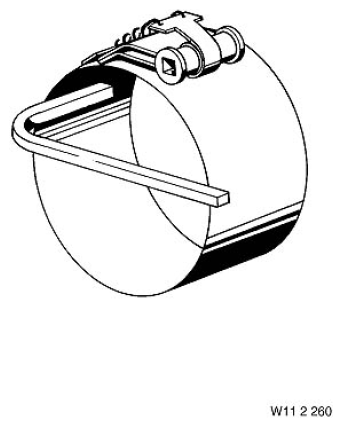

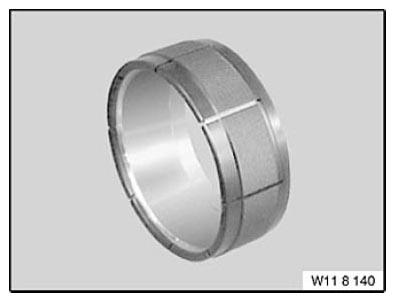

Fig 23: Assembly Sleeves

118 141 (83 30 0 494 394)
118 142 (83 30 0 494 395)

This tool is used for fitting pistons, 84.00 and 84.08 diameters. For more details, refer to repair instructions for the 7 Series E38, section 11 25 530.

Fig 24: Fitting Piston With Special Tool

Holder

Order PN 83 30 0 493 587

Cartool PN 118 180

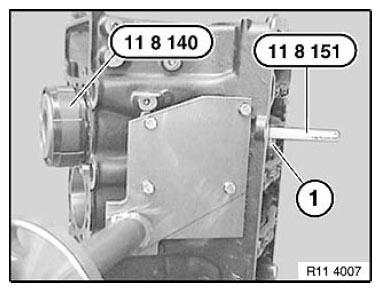

Fig 25: Holder

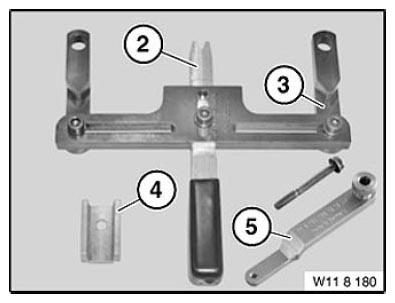

118 181 (83 30 0 494 432)
118 182 (83 30 0 494 433)

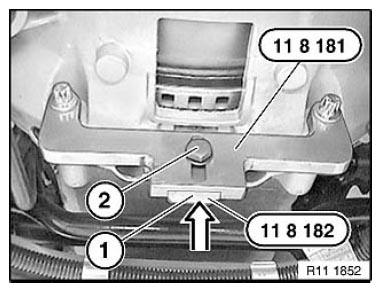

This tool is used for loosening and tightening the central bolts of the vibration damper and the torque converter. For more details, refer to repair instructions for the 7 Series E38, section 11 23 010.

Fig 26: Holder Installation

Cleaning Set

Order PN 83 30 0 493 758

Cartool PN 135 210

Fig 27: Cleaning Set

135 211 (83 30 0 493 759) Guide sleeve
135 212 (83 30 0 493 760) Brush holder
135 213 (83 30 0 493 761) Brush head
135 214 (83 30 0 493 762) Mounting rod for seal plug
135 215 (83 30 0 493 763) Seal plug

This tool is used for cleaning the injector ducts. For more details, refer to repair instructions for the 3 Series E46, 5 Series E39, and 7 Series E38, section 13 53...

Oil Seal Puller

Order PN 83 30 0 490 725

Cartool PN 111 210

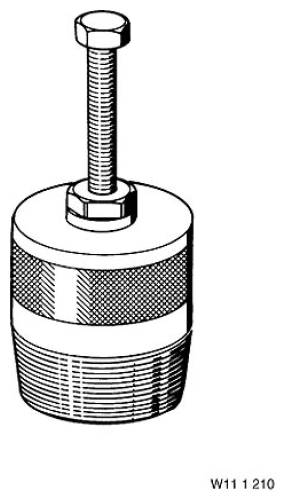

Fig 28: Oil Seal Puller
