Oil Line Extraction Tool (04 19 09)

Publication date: 2009-06-18
Reference number: 04 19 09

OIL LINE EXTRACTION TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 19 09, Date of Issue: June 18, 2009

BMW:	M57Y
GROUP:	Tools and Equipment

SUBJECT

Oil Line Extraction Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Extracting Tool

Order P/N 83 30 0 495 331

Cartool P/N 130 170

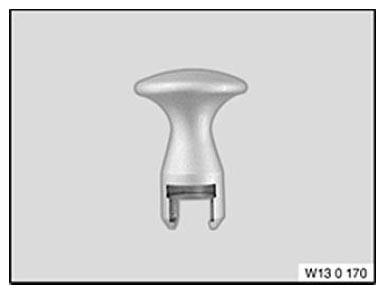

Fig 1: Oil Line Extraction Tool

This tool must be used when removing the leakage oil lines on the injectors. Refer to the Repair Manual, Section 13 53 330, for more details.

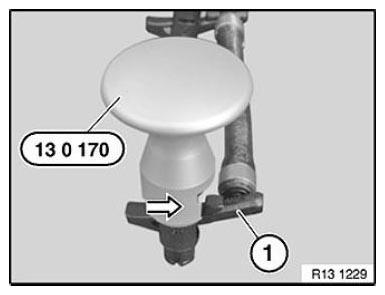

Fig 2: Removing Leakage Oil Lines On Injector
