61 35... Overview of control units, equipment mounting, luggage compartment
61 35... Overview of control units, equipment mounting, luggage compartment

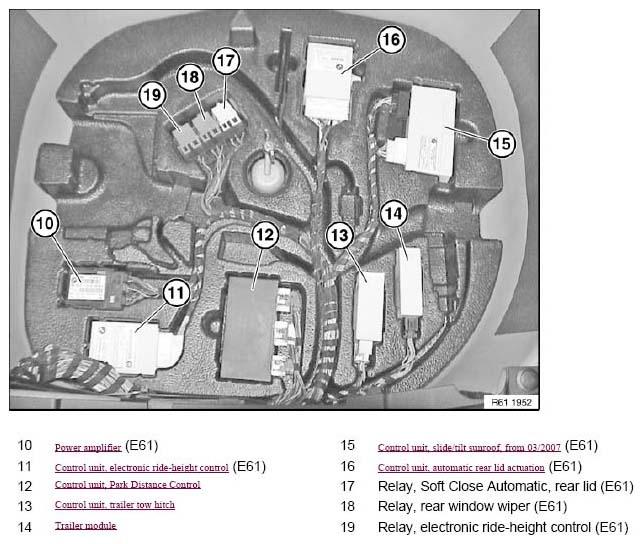

Fig 1: Overview Of Control Units, Equipment Mounting, Luggage Compartment
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
