Design of Image Sensor

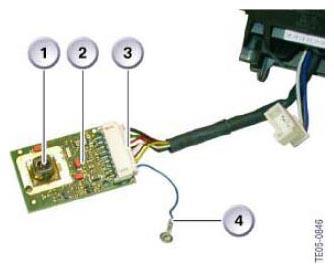

Fig 1: Identifying Design Of Image Sensor
G06896174Courtesy of BMW OF NORTH AMERICA, INC.
INDEX EXPLANATION CHART

Index Explanation
1 Image sensor
2 PC-board for image sensor
3 LVDS connector
4 Ground connection
