Injector Line Tools (04 33 08)

Publication date: 2009-02-05
Reference number: 04 33 08

INJECTOR LINE TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 33 08, Date of Issue: February 2009

BMW:	N63
GROUP:	Tools and Equipment

SUBJECT

Injector Line Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Spanner Socket WAF 15

Order PN 83 30 0 496 481

Cartool PN 001 440

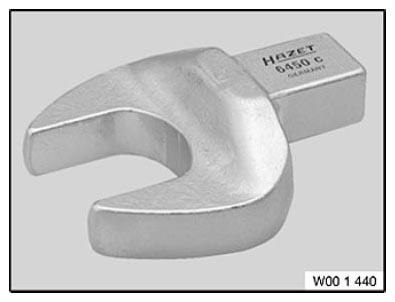

Fig 1: Spanner Socket WAF 15

This tool is used in conjunction with a square drive torque wrench and 130 160 for tightening the screw connection for the fuel line to the injector. For more details, refer to repair instructions for N63 engine, section 13 53 315.

Torque wrench (not included)
00 1 440
130 162
130 161

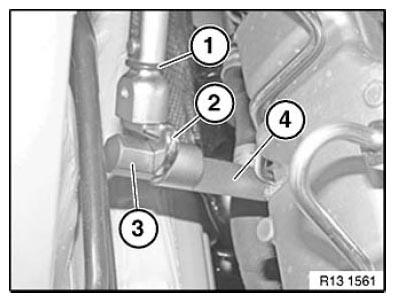

Fig 2: Tightening Screw Connection For Fuel Line To Injector

Socket Wrench with Adapter

Order PN 83 30 0 496 371

Cartool PN 130 160

130 161 Socket wrench WAF14
130 162 Adapter WAF 15

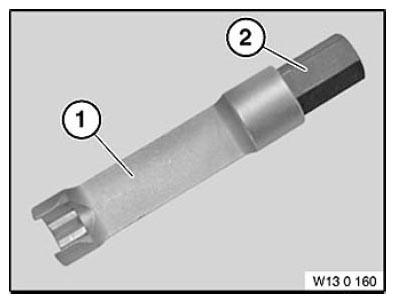

Fig 3: Socket Wrench With Adapter

This tool is used in conjunction with 001 440 (2) for loosening and tightening the screw connection for the fuel line to the injector. For more details, refer to repair instructions for N63 engine, section 13 53 315.

Fig 4: Tightening Screw Connection For Fuel Line To Injector
