Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| E-Box | Left rear of engine compartment. |

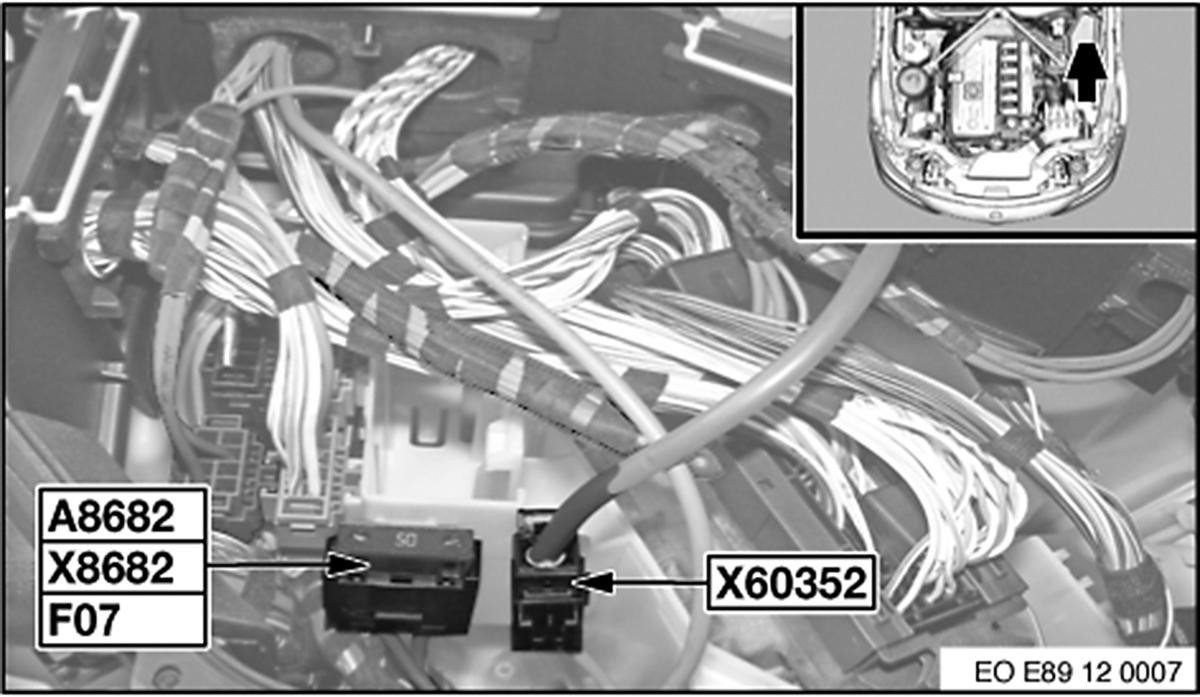

| Engine Electronics Fuse Carrier (A8682) | Left rear of engine compartment. See Figure. |

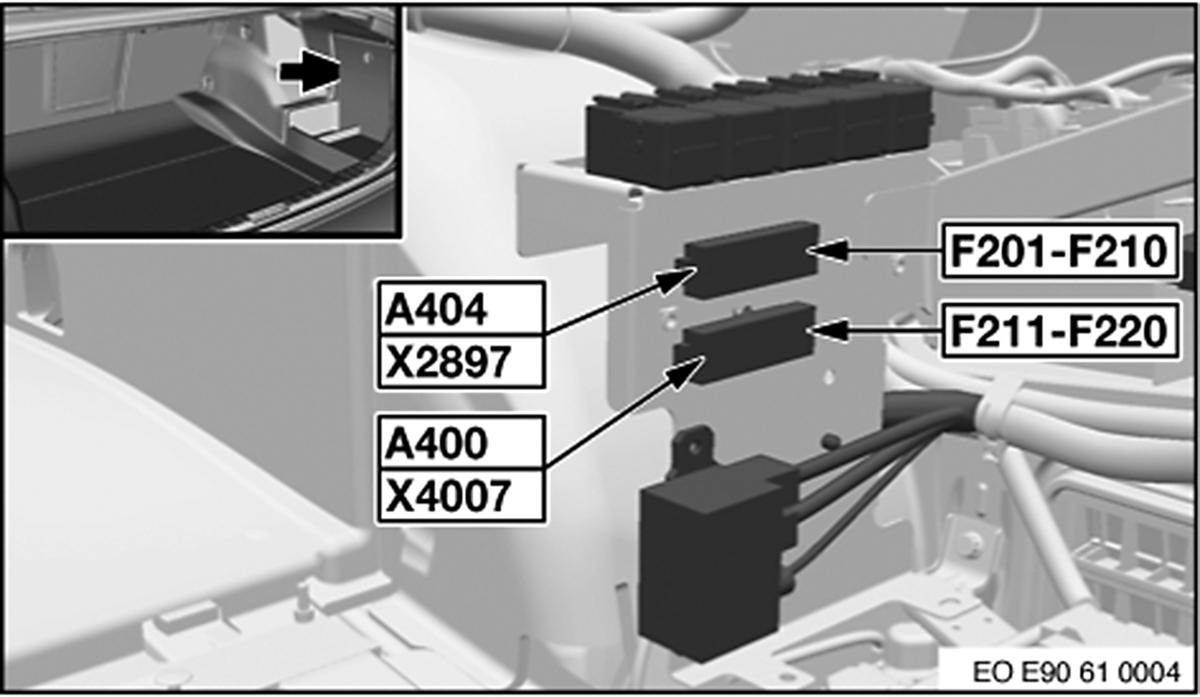

| Fuse Box (A400 & A404) | Right side luggage compartment. See Figure. |

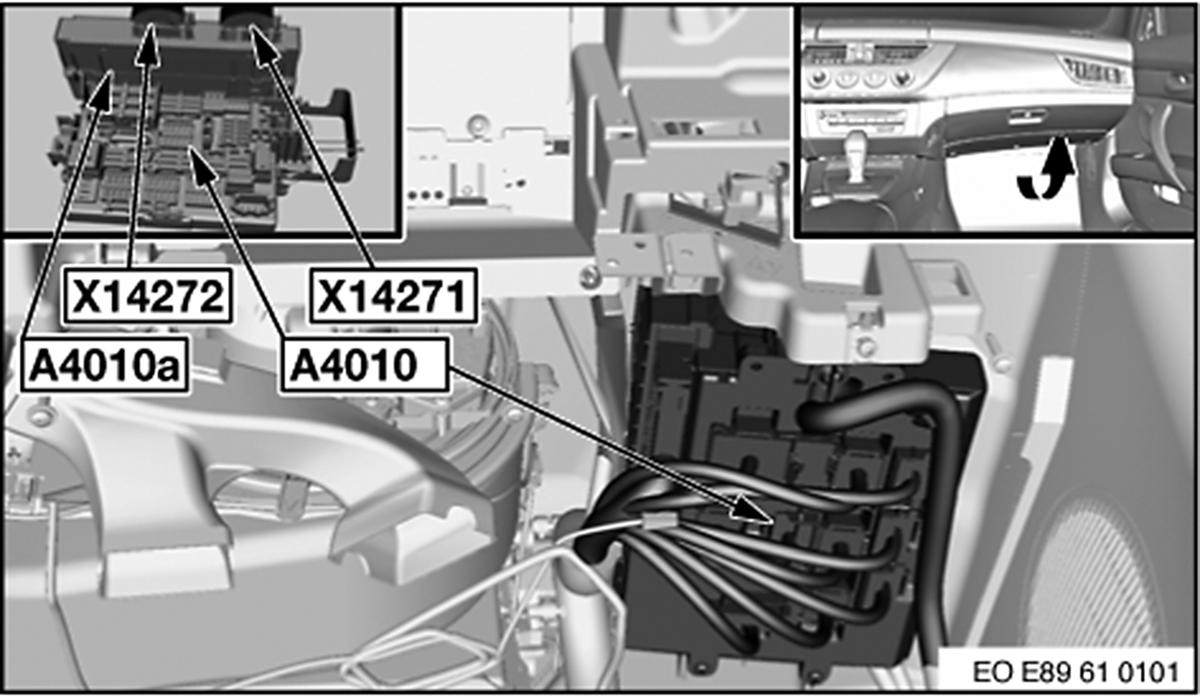

| Junction Box (A4010) | Right side of dash. See Figure. |
| Power Distribution (A41) | Right side of dash. |
