99 00... Sectional painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Roof with roof frame

Area specification applies to all paint stages.

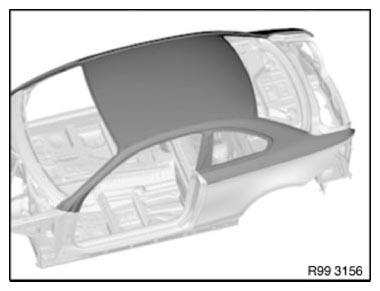

Fig 1: Identifying Roof With Frame Paint Area

G10023089

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

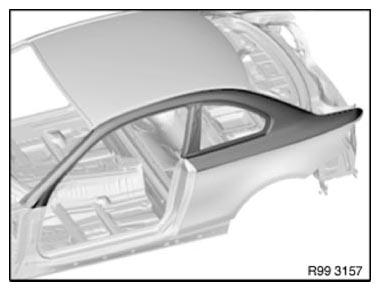

Fig 2: Identifying Roof Frame Paint Area

G10023090

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front (up to B pillar)

Area specification applies to paint stage 1.

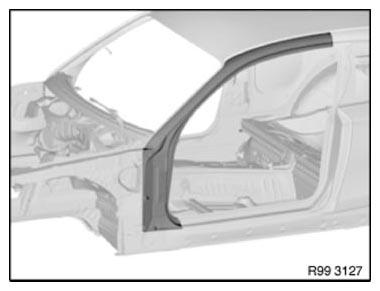

Fig 3: Identifying Front Roof Frame Paint Area

G10023091

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front (up to B pillar)

Area specification applies to paint stage 3.

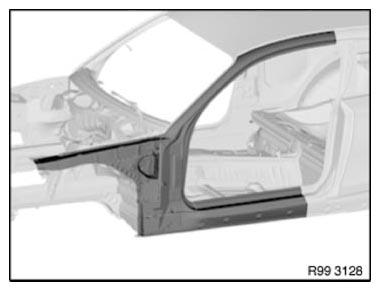

Fig 4: Identifying Front Roof Frame Paint Area

G10023092

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (with roof frame up to B-pillar)

Area specification applies to paint stage 1.

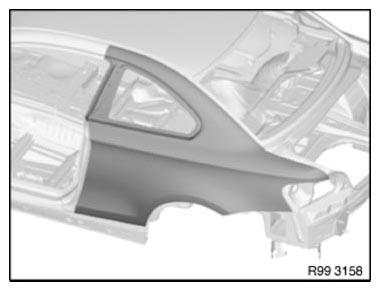

Fig 5: Identifying Rear Side Panel Paint Area

G10023093

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (with roof frame up to B-pillar)

Area specification applies to paint stage 3.

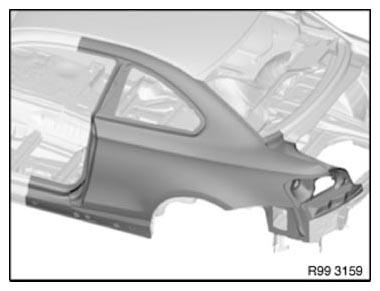

Fig 6: Identifying Rear Side Panel Paint Area

G10023094

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

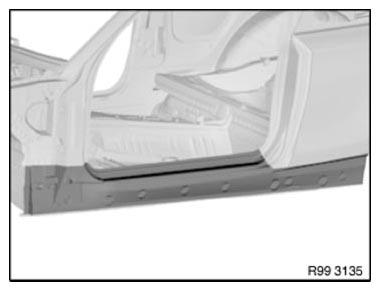

Fig 7: Identifying Entrance Cover Paint Area

G10023095

Courtesy of BMW OF NORTH AMERICA, INC.

Front door above separation edge

Area specification applies to all paint stages.

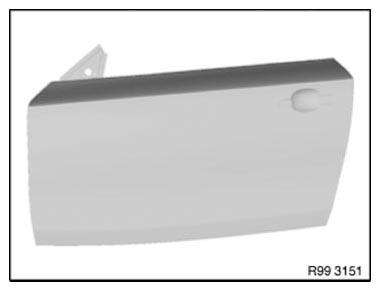

Fig 8: Identifying Front Door Separation Edge Paint Area

G10023096

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid, top

Area specification applies to all paint stages.

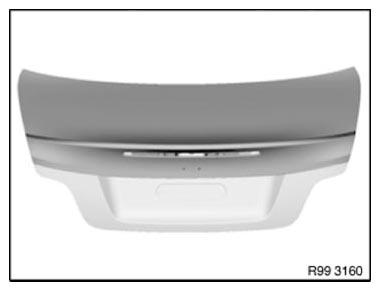

Fig 9: Identifying Top Rear Lid Paint Area

G10023097

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid, bottom

Area specification applies to all paint stages.

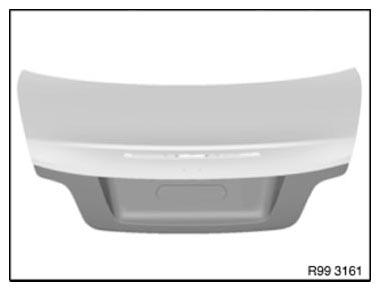

Fig 10: Identifying Bottom Rear Lid Paint Area

G10023098

Courtesy of BMW OF NORTH AMERICA, INC.

Front bumper

Area specification applies to all paint stages.

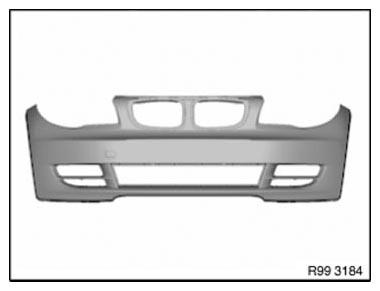

Fig 11: Identifying Front Bumper Paint Area

G10023099

Courtesy of BMW OF NORTH AMERICA, INC.

Rear bumper

Area specification applies to all paint stages.

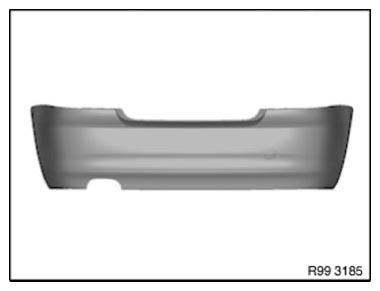

Fig 12: Identifying Rear Bumper Paint Area

G10023100

Courtesy of BMW OF NORTH AMERICA, INC.
