Plug Connection, Terminal, Power Distribution Box
›
61 13... Socket of tab connector housings
61 13... Socket of tab connector housings

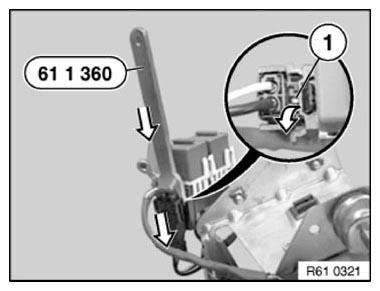

Unlock hooks (1) with special tool 61 1 360 and push plug housing out of the socket.
Fig 1: Removing Hooks Using Special Tool 61 1 360
Courtesy of BMW OF NORTH AMERICA, INC.
