Camshaft sensor

Note! Possible design-related defect on camshaft sensor.

With the corresponding fault memory entry in the engine management system on replacement, use a camshaft sensor of new design [2].

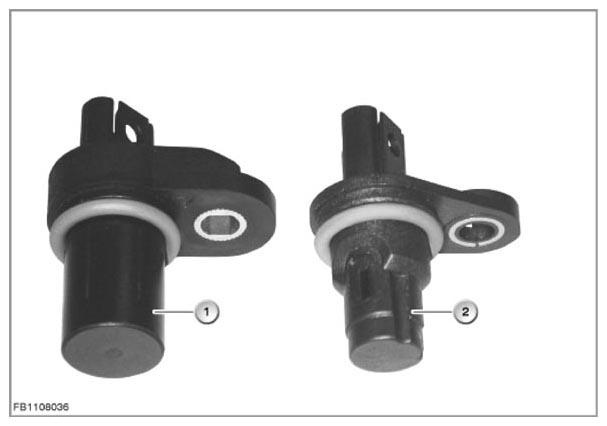

Fig 1: Identifying Camshaft Sensor Design-Related Defect

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Camshaft sensor used to date Part number: 7558518-02
2	Camshaft sensor new design
