Necessary preliminary tasks

• Disconnect BATTERY NEGATIVE LEAD
• Remove FRONT LEFT WHEEL ARCH COVER (REAR SECTION)

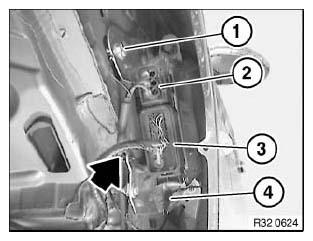

Release screw (1) and remove grounding cable.

Unlock plug (2) with a suitable tool and detach.

Open cable tie (arrowed).

Unclip cable holder (4).

Unlock plug (3) with a suitable tool and detach.

Installation:

Replace faulty cable holder (4).

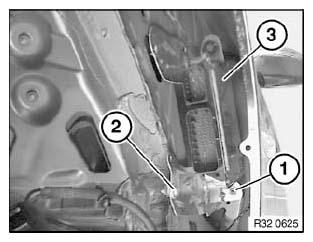

Unscrew nut (1).

Tightening torque 32 43 1AZ .

Release screw (2).

Tightening torque 32 43 1AZ .

Remove active front steering control unit (3).
