Necessary preliminary tasks

NOTE: Glovebox removed for purposes of clarity.

Disconnect plug connection (1).

Release screws (2) and remove junction box electronics (3) from holder.

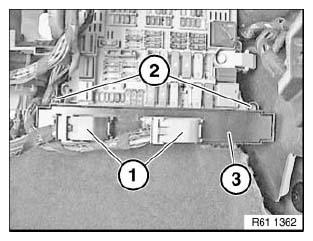

Fig 1: Identifying Plug Connection, Screws And Junction Box Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation:

Make sure junction box electronics is correctly seated on plug connection (2) of holder.

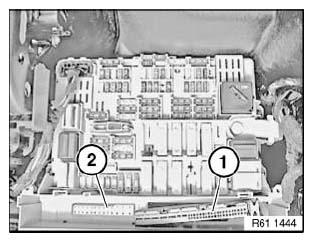

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Delete transport mode.
