6131133 Removing and installing/replacing AV connection socket

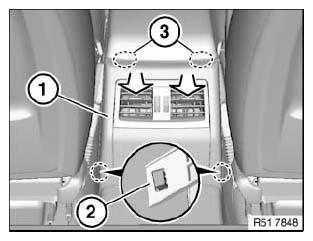

IMPORTANT: Grip behind trim (1) from below and release catch (2) (risk of damage).

NOTE: Version with rear air conditioning is shown.

Fig 1: Releasing Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

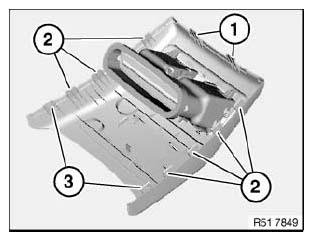

Catches (1 and 3) and guides (2) must not be damaged.

Fig 2: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

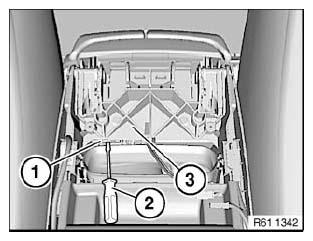

Lever AV connection socket (1) with a suitable tool (2) upwards out of storage compartment (3).

Fig 3: Removing AV Connection Socket With Suitable Tool Upwards Out Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

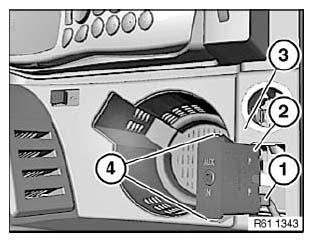

Disconnect plug connection (1).

Remove AV connection socket (2) upwards out of storage compartment (3).

Installation:

Locks (4) must not be damaged.

Make AV connection socket (1) is correctly seated in storage compartment (3).

Fig 4: Removing AV Connection Socket Upwards Out Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
