8-wire LVDS

Transmission of video signals via 8-wire LVDS technology with CCC and CID.

(LVDS+ and LVDS- for each of the four signal lines and an additional synchronization line)

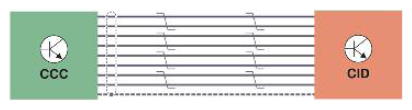

Fig 1: 8-Wire LVDS Technology With CCC And CID

Courtesy of BMW OF NORTH AMERICA, INC.
