CIC Application Board with Processors
The application board accommodates the main processor (CPU = Central Processing Unit) and the main memory modules (RAM = Random Access Memory) for the CIC. These components are soldered into the board and cannot be replaced.

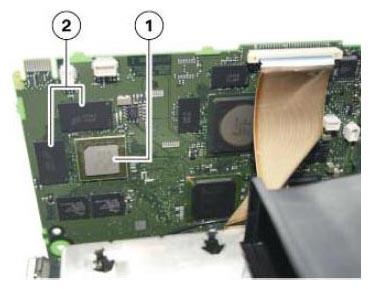

CPU AND MAIN MEMORY EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | CPU - Central processing unit |
| 2 | Main memory (RAM) of the CIC |
