SCR System Modes: Notes

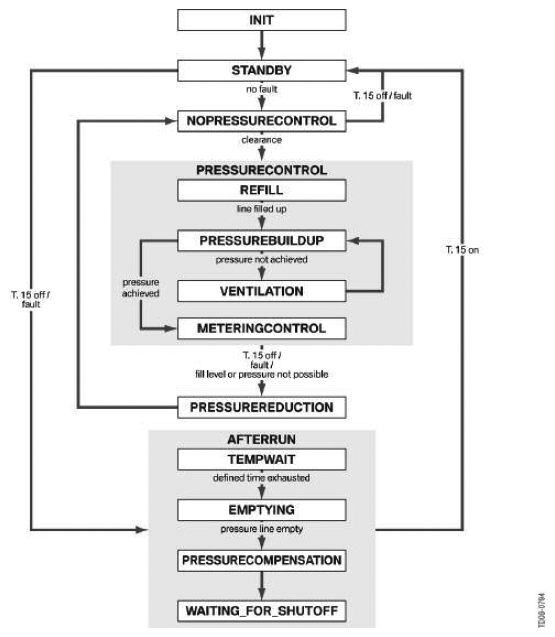

When the ignition is switched on, the SCR control undergoes a logical sequence of modes in the DDE. There are conditions that initiate the change from one mode to the other. The following graphic shows the sequence of modes which are subsequently described.
