1619 SCR technology
›
1600... Overview of SCR system
1600... Overview of SCR system

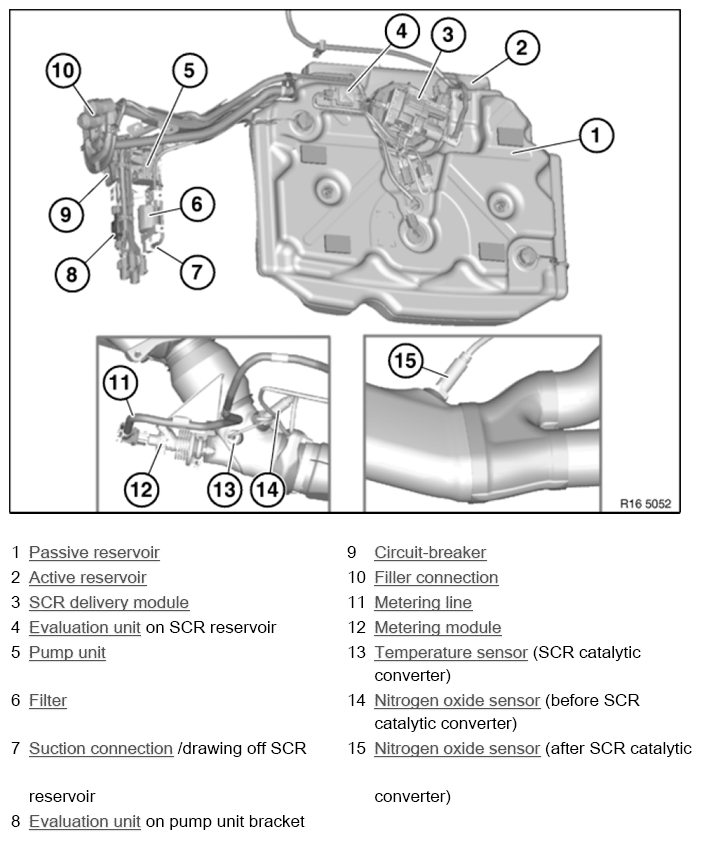

Fig 1: Identifying SCR System Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
