Fuel Pump - E90

On the E90, the fuel pump is a gear type pump. The gear pump is comprised of an outer rotor (1) with teeth on the inside, and an inner rotor (4) with teeth on the outside. The inner rotor is driven by the drive shaft (5) of the electric motor. The outer rotor is propelled by the teeth of the inner rotor and thus turns inside the pump housing.

The inner rotor has one tooth fewer than the outer rotor, which means that, with each revolution, fuel is carried into the next tooth gap of the outer rotor.

During the rotary motion, the spaces on the intake side enlarge, while those on the pressure side become proportionately smaller. The fuel is fed into the rotor pump through two grooves in the housing, one on the intake side and one on the pressure side. Together with the tooth gaps, these grooves form the intake section (6) and pressure section (3).

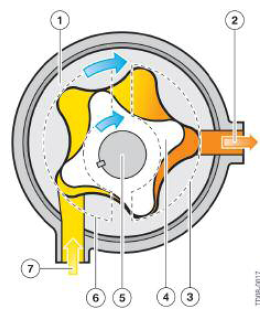

Fig 1: Fuel Pump Operation Diagram - E90

Courtesy of BMW OF NORTH AMERICA, INC.
