Air Supply and Extraction

Fuel ventilation is ensured by means of the filler vent valve (H). The filler vent valve is located in the fuel tank and uses the connection (I) to determine the maximum fill level (J). The filler vent valve contains a float that buoys upwards on the fuel when the vehicle is refuelled and blocks the filler ventilation. The fuel rises in the fuel filler and the fuel nozzle switches off.

A roll-over valve is also integrated in the filler vent valve to block the ventilation line when a certain angle of incline is reached and prevents fuel from draining out if the vehicle were to roll over.

The non-return valve (K) prevents fuel from escaping via the ventilation when the vehicle is refuelled. During operation, air can flow into the fuel filler pipe and the fuel can flow from the fuel filler pipe into the tank.

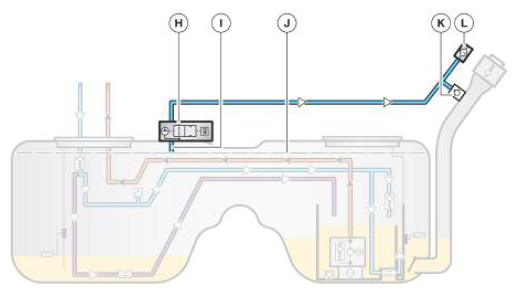

Fig 1: Air Supply And Extraction - System Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

The filter (L) prevents dirt or insects from entering the ventilation and blocking the line.

If the ventilation line does become blocked, fuel consumption during operation would cause negative pressure and the fuel tank would be compressed and damaged.
