Converter Lock Device And Tool Modification (04 26 07)

CONVERTER LOCK DEVICE AND TOOL MODIFICATION

TECHNICAL SERVICE BULLETIN

SUBJECT

Converter Lock Device and Tool Modification

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program.

Additional tools may be purchased through your Regional Distribution Center (RDC).

Converter Locking Device

Order PN 83 30 0 495 444

Cartool 241 360

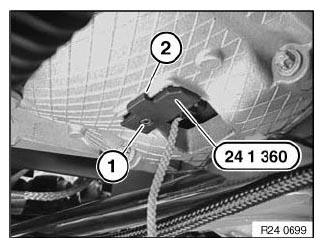

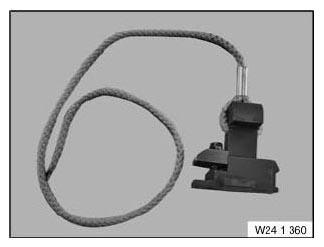

It's used to lock the converter in place during transmission removal and installation. Refer to Repair Manual section 24 00 023 for details.

Distribution of the following tool will not  be through the Automatic Tool Shipment Program. Tools may be purchased through your Regional Distribution Center (RDC).

Support Adapters

Order PN 83 30 0 495 374

Cartool 314 080

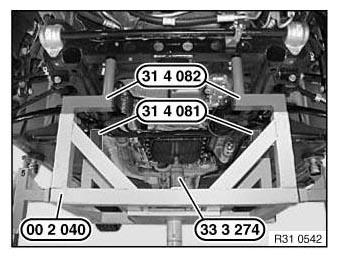

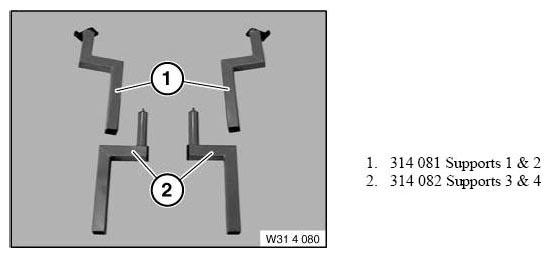

They're used in conjunction with Transmission stand 83 30 0 490 133 (002 030) to support the front axle carrier during removal and installation. Refer to Repair Manual section 31 11 506 for details.

Modification of the following previously distributed tools will allow them to be utilized on the E90 and E91.

Pin Spanner Wrench

Order PN 83 30 0 494 806

Cartool 251 120

SI B04 28 03

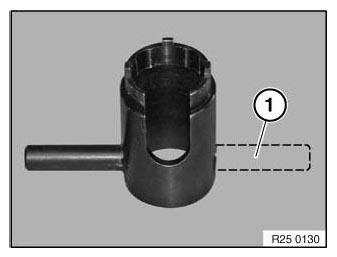

Remove the handle (1) from the tool and file the tool until smooth.

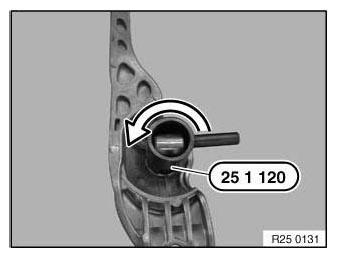

This tool is used to loosen and tighten the gear lever bearing during the removal and installation of the gear lever.

Separating Fork

Order PN 83 30 0 491 984

Cartool 315 110

SI B04 51 02

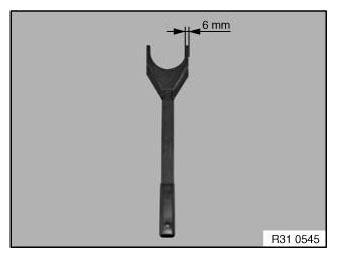

Remove 3.25 mm from the outer contour of the tool, reducing the dimension from 9.25 mm to 6 mm. This fork tool is used to separate the output shaft from the front axle differential.
