2.1. Car Information Computer: Notes

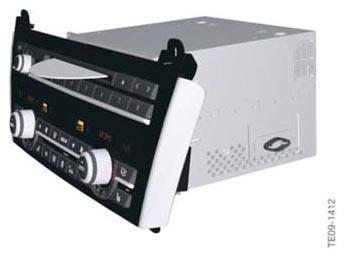

Fig 1: Identifying Car Information Computer (CIC)

Courtesy of BMW OF NORTH AMERICA, INC.

The CIC head unit was installed for the first time on BMW 1 Series and 3 Series vehicles with the navigation system (option 609). This further development of the Car Communication Computer CCC is now also being used in the F10.

By storing data on a 80 gigabyte hard disk, the new head unit provides many new functions and options.

The audio systems with CIC added a music collection function. Music files can be converted (ripped) or copied for the music collection on the hard disc. Fast access to these music files, stored on the CIC-dedicated hard disc, is ensured at all times. A selection of up to 3700 music files (12 gigabytes) is possible.

The tuners/decoders of the digital radio systems, (IBOC) digital tuner and satellite tuner (SDARS) are now integrated into the CIC.

A modified base plate adapter extends the connectivity of the music player (option 6NF). This makes it possible to connect to and play back music tracks in the mobile phone.

Simple menu navigation and playback of these music tracks can now be controlled via the iDrive.
