Components in the Vehicle: Notes

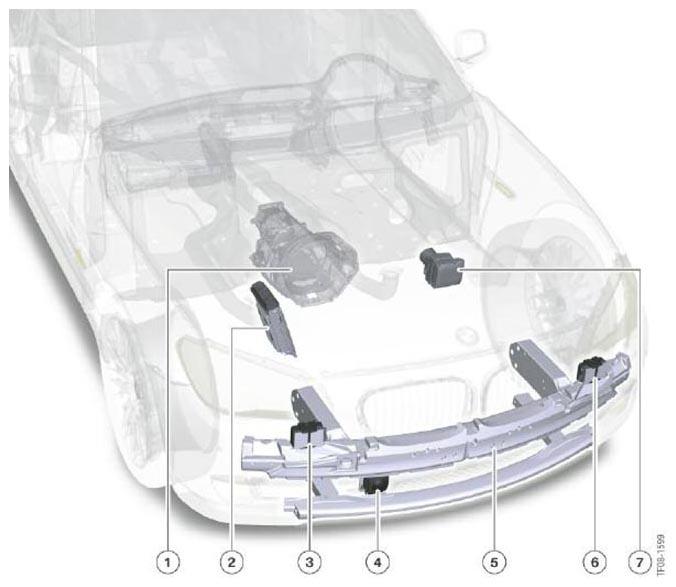

DCC/ACC STOP AND GO SYSTEM COMPONENTS REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Electronic transmission control module |
| 2 | Engine control system |
| 3 | Short-range radar sensor (SRR), right |
| 4 | Long-range radar sensor (LRR) |
| 5 | Bumper cross-member |
| 6 | Short-range radar sensor (SRR), left |
| 7 | Dynamic Stability Control |

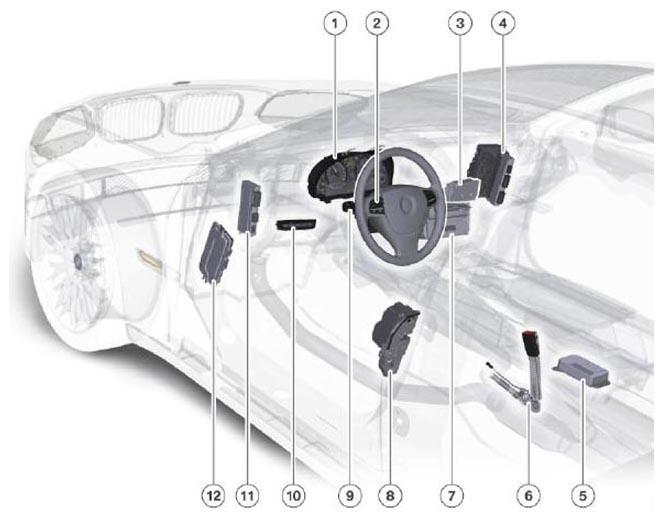

DCC/ACC STOP AND GO SYSTEM COMPONENTS REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Instrument cluster |
| 2 | Multifunction steering wheel button pad |
| 3 | Crash safety module |
| 4 | Front fuse carrier, junction box electronics |
| 5 | Control unit for Integrated Chassis Management |
| 6 | Seat belt buckle contact, driver's seat |
| 7 | Car Information Computer |
| 8 | Door switch, driver's door |
| 9 | Steering column switch cluster with steering angle sensor |
| 10 | Driver assistance systems operating unit |
| 11 | Central gateway module |
| 12 | Footwell module |
