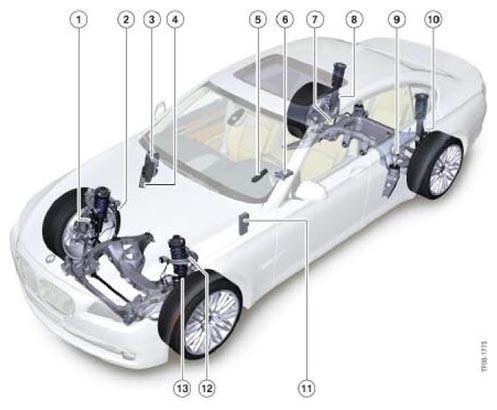

Components of Vertical Dynamics Control (standard equipment)
VERTICAL DYNAMICS CONTROL COMPONENT REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | EDC_SVR |
| 2 | Ride-height sensor, front right |
| 3 | Front power distribution box |
| 4 | VDM |
| 5 | Handling setting switch |
| 6 | ICM |
| 7 | Ride-height sensor, rear right |
| 8 | EDC_SHR |
| 9 | Ride-height sensor, rear left |
| 10 | EDC_SHL |
| 11 | ZGW |
| 12 | Ride-height sensor, front left |
| 13 | EDC_SVL |
