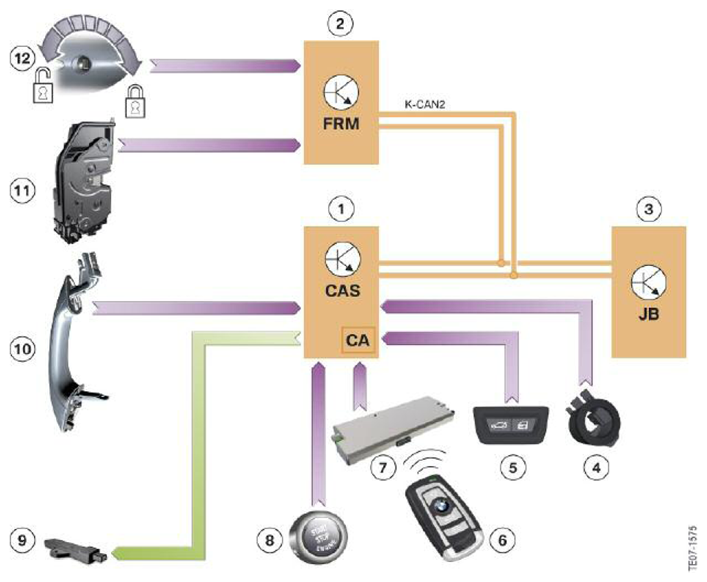

Input/Output - Comfort Access
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | CAS 4 Car Access System 4 |
| 2 | Footwell module (FRM) |
| 3 | Junction box electronics (JB) |
| 4 | Emergency start coil (transponder coil) |
| 5 | Central locking button 12 Driver's door lock cylinder |
| 6 | ID transmitter |
| 7 | Diversity module |
| 8 | START-STOP button |
| 9 | Antenna for Comfort Access |
| 10 | Outside door handle electronics module |
| 11 | Lock with door contact |
| CA | Comfort Access (function) |
| K-CAN2 | Body CAN2 |
