11 15 007 Replacing connecting line on left

Necessary preliminary tasks:

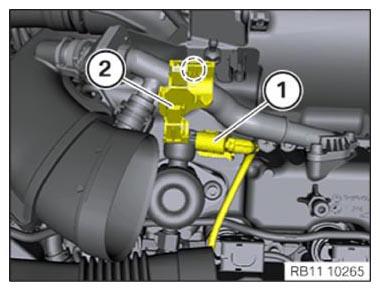

Unclip plugs (1 and 2) from holder.

Unlock the plugs (1 and 2) and disconnect them.

Fig 1: Identifying Plugs From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

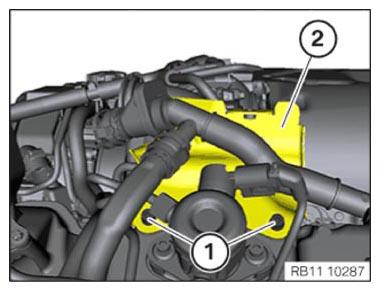

Unlock and disconnect the connector (1).

Unlock the holder (2) and carefully guide it out by removing upward.

Fig 2: Identifying Holder With Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Remove holders (3) upwards.

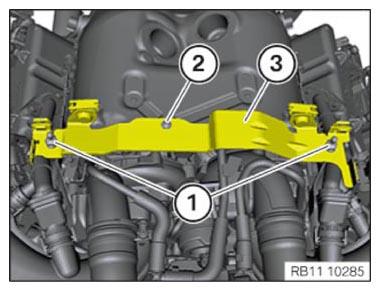

Fig 3: Identifying Holder With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

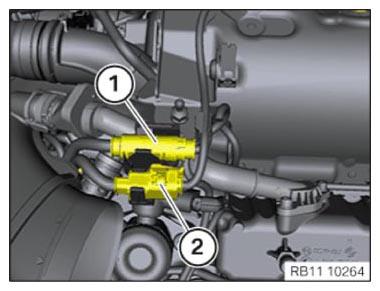

Release screws (1).

Feed out holder (3) towards top.

Fig 4: Identifying Holder With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

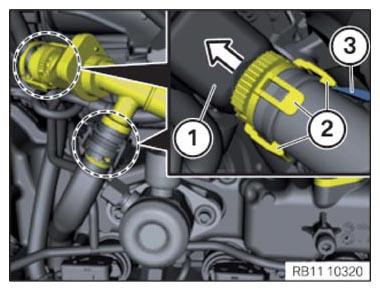

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Fig 5: Pulling Connecting Line Of Air Pipe And Engine Crankcase Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

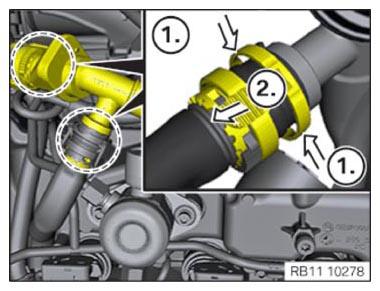

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Fig 6: Pulling Connecting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 11 12 10AZ .

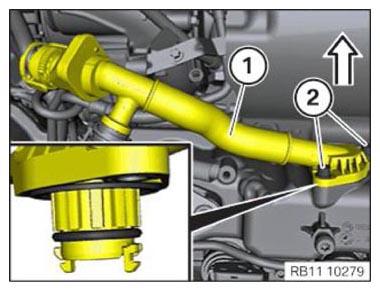

Detach the connecting line (1) from the cylinder head cover by pulling it upward.

Fig 7: Detaching Connecting Line From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Conduct visual inspection to check for loose parts.

Remove any loose parts that may be on the oil separator.

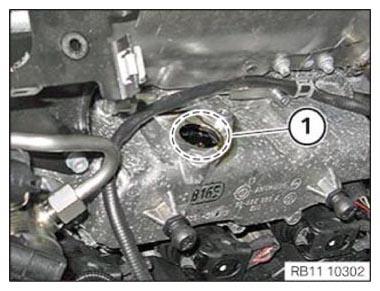

Fig 8: Identifying Oil Separator Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
