Connector End Views (E70)
›
Connector End Views
›

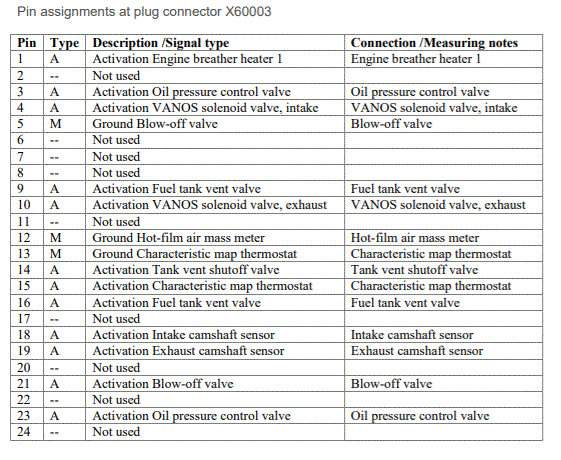

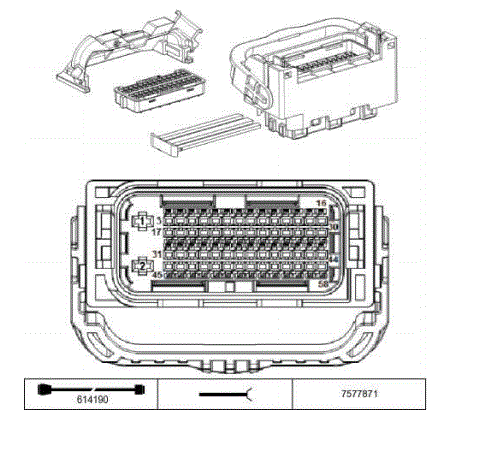

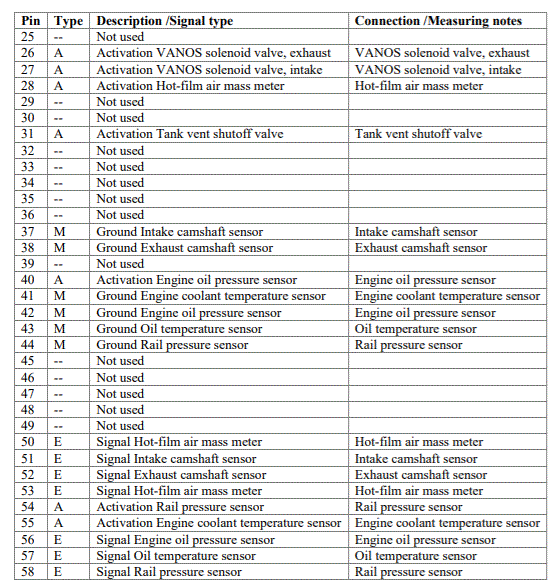

DME Control Module X60003 Connector End View
DME Control Module X60003 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
