System Components

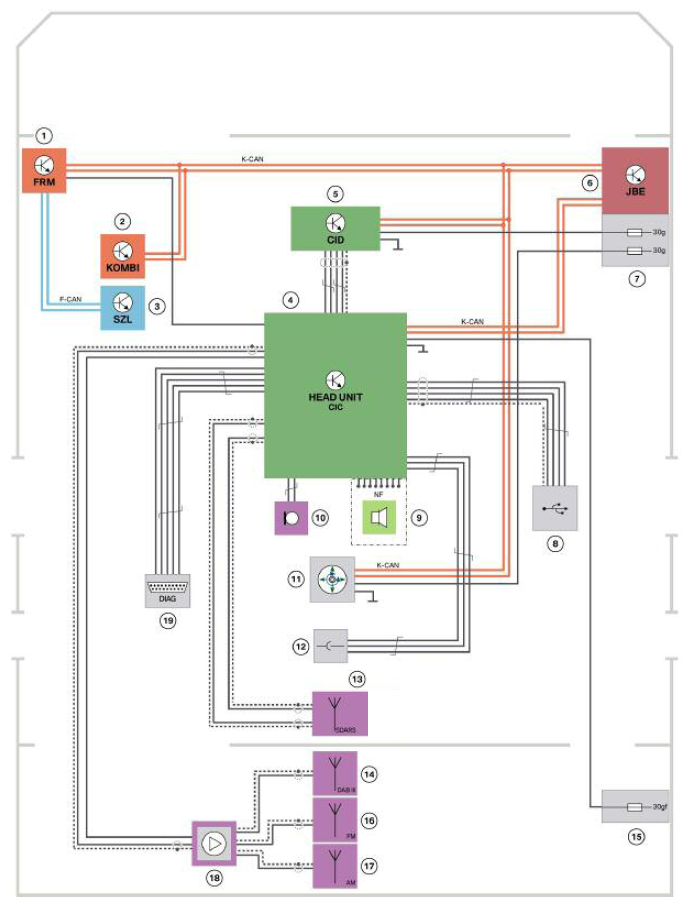

CIC REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Footwell module |
| 2 | M Instrument cluster |
| 3 | Steering column switch cluster |
| 4 | Car information computer |
| 5 | Central information display |
| 6 | Junction box electronics |
| 7 | Junction box, front power distribution box |
| 8 | USB port in glove compartment for importing data |
| 9 | AF output for the speakers (stereo system) |
| 10 | Microphone, driver's side |
| 11 | Controller |
| 12 | Jack plug, AF input in center console for playback of audio files |
| 13 | SDARS antenna in roof fin |
| 14 | Not for US |
| 15 | Rear power distribution box |
| 16 | AM antenna |
| 17 | FM antenna |
| 18 | Antenna diversity module with integrated antenna amplifier |
| 19 | Diagnostic socket |
