New Features: Presets: Notes

There is a combined preset list available under the radio menu in which a maximum of 40 presets from different audio sources can be stored. The presets are key dependent and present in every new life cycle. There are different possibilities to store a channel in the preset list: Directly and via the options menu.

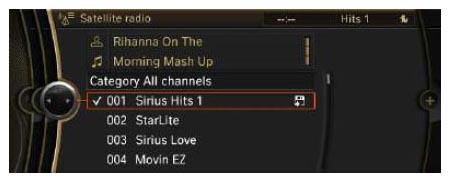

Fig 1: Display - Sirius Hits 1
G06896372Courtesy of BMW OF NORTH AMERICA, INC.

Tune a channel on the current list and press the controller.

OR

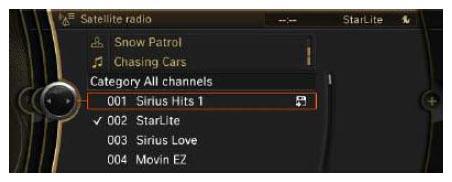

Fig 2: Display - Sirius Hits 1
G06896373Courtesy of BMW OF NORTH AMERICA, INC.

Highlight any channel of the active list and keep pressing the controller.

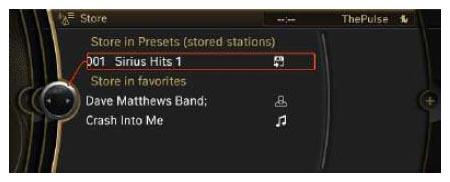

Fig 3: Display - Sirius Hits 1
G06896374Courtesy of BMW OF NORTH AMERICA, INC.

Confirmation to store the channel in the preset list is needed with those two ways of storing a channel. In this screen it is also possible to store favorites.

OR

Highlight any station and shift the controller to the right or press the "Options" button and select "store channel". This procedure leads directly to the "Preset List".

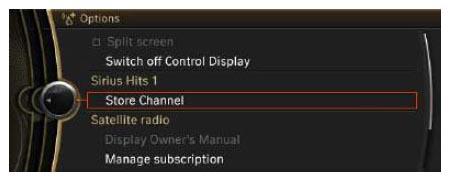

Fig 4: Display - Store Channel
G06896375Courtesy of BMW OF NORTH AMERICA, INC.

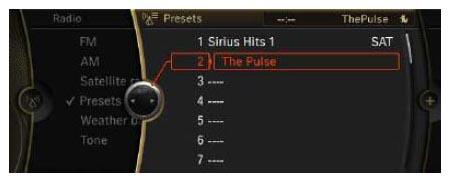

Fig 5: Display - Pulse
G06896376Courtesy of BMW OF NORTH AMERICA, INC.

Now choose the position in which the channel should be stored.

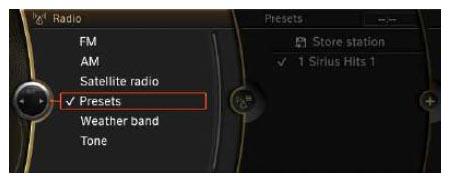

Fig 6: Display - Preset
G06896377Courtesy of BMW OF NORTH AMERICA, INC.

To tune a preset enter the preset list and choose a preset.

"SAT" is written next to a stored SDARS channel in the presets list (or FM, AM depending on source).

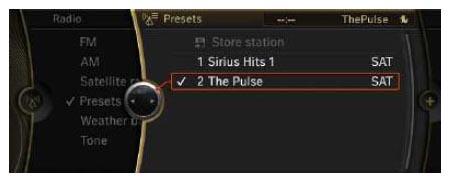

Fig 7: Display - Pulse
G06896378Courtesy of BMW OF NORTH AMERICA, INC.

To delete a preset, highlight the corresponding preset and press the option button, or shift the controller to the right, to enter the options menu.

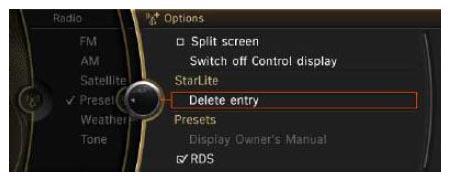

Fig 8: Display - Delete Entry
G06896379Courtesy of BMW OF NORTH AMERICA, INC.

Now delete the entry.
