Multifunction steering wheel
The left-hand button pad in the multifunction steering wheel has the following functions:
- Setting the desired driving speed
- Cruise control with brake function or active cruise control
The following graphic shows an example of the left keypad in the multifunction steering wheel for a optional equipment SA544 Cruise control with braking function as an example F25.
| Item | Explanation |
|---|---|
| 1 | Set button |
| 2 | RES button for resumption or loading of stored driving speed |
| 3 | Rocker switch to increase or decrease driving speed |
| 4 | Switch cruise control to stand-by or switch off |

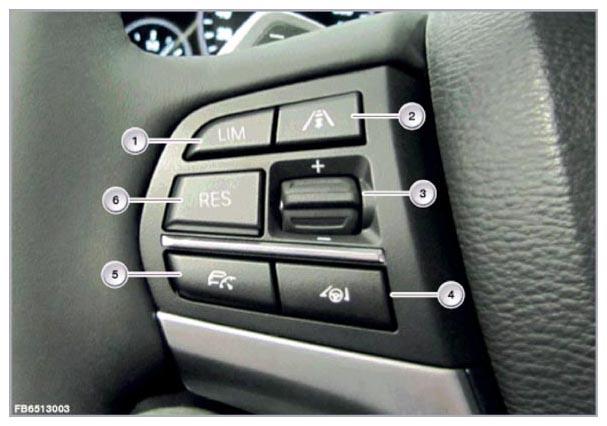

The following graphic shows the left keypad in the multifunction steering wheel for the optional equipment SA5AR traffic jam assistant as an example F15.
| Item | Explanation |
|---|---|
| 1 | LIM button to set the desired driving speed |
| 2 | Button to increase or decrease the distance |
| 3 | Rocker switch to increase or decrease driving speed |
| 4 | Switch traffic jam assistant on or off |
| 5 | Switch cruise control to stand-by or switch off |
| 6 | RES button for resumption or loading of stored driving speed |
The right-hand button pad in the multifunction steering wheel has the following functions:
- Scan audio functions
- Telephone
- Voice input

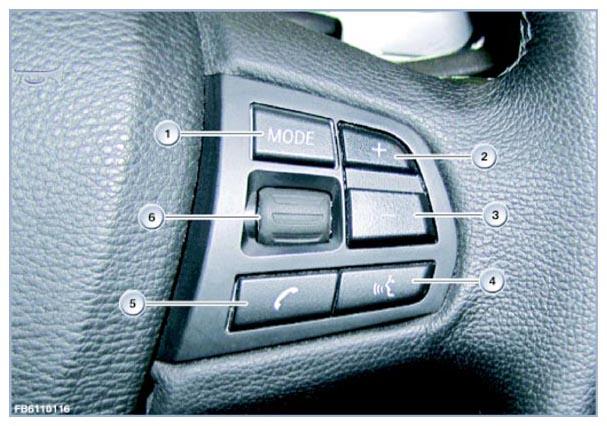

The following graphic shows an example of the right keypad in the multifunction steering wheel as an example F25.
| Item | Explanation |
|---|---|
| 1 | MODE button |
| 2 | Rocker switch + |
| 3 | Toggle switch - |
| 4 | Hands-free button |
| 5 | Telephone key |
| 6 | Knurled wheel for selection list (e.g. in the instrument cluster) |
