System function: Notes

The Active Cruise Control with Stop&Go function (ACC) adjusts the speed set by the driver and the distance to the vehicle in front.

The following graphic shows the activated Active Cruise Control with Stop&Go function (ACC) in the instrument cluster (KOMBI) and Head-Up Display.

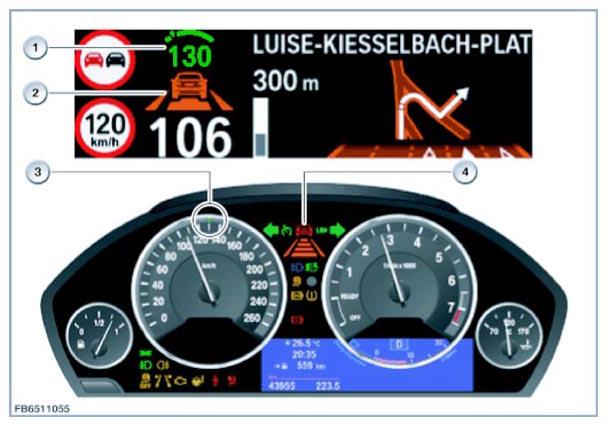

Fig 1: Display - Instrument Cluster Set Speed Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Display for set speed in Head-Up Display
2	Display for activated Active Cruise Control with Stop&Go function (ACC) in Head-Up Display
3	Display for set speed in instrument cluster
4	Display for activated Active Cruise Control with Stop&Go function (ACC) in instrument cluster
