Overview of engine

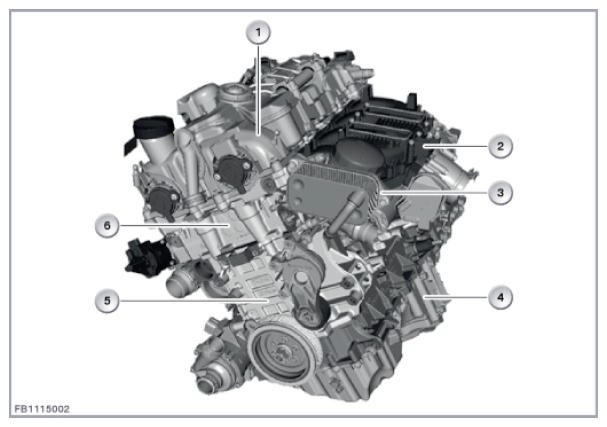

| Item | Description |
|---|---|
| 1 | Cylinder head cover |
| 2 | Intake plenum |
| 3 | Oil-to-water heat exchanger |
| 4 | Oil sump |
| 5 | Engine block |
| 6 | Cylinder head |

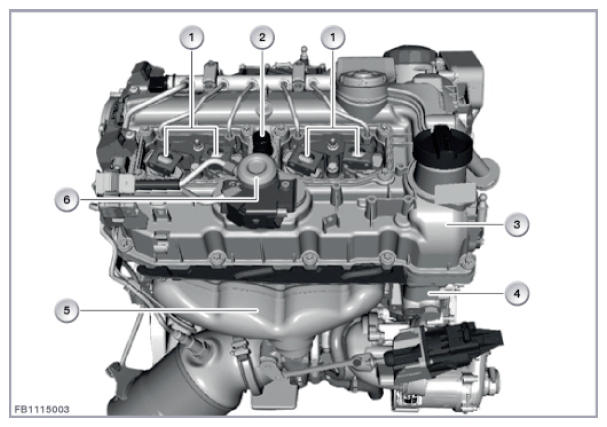

| Item | Description |
|---|---|
| 1 | Ignition coil |
| 2 | Connector for Valvetronic servomotor |
| 3 | Cylinder head cover |
| 4 | Cylinder head |
| 5 | Exhaust manifold |
| 6 | High pressure pump |

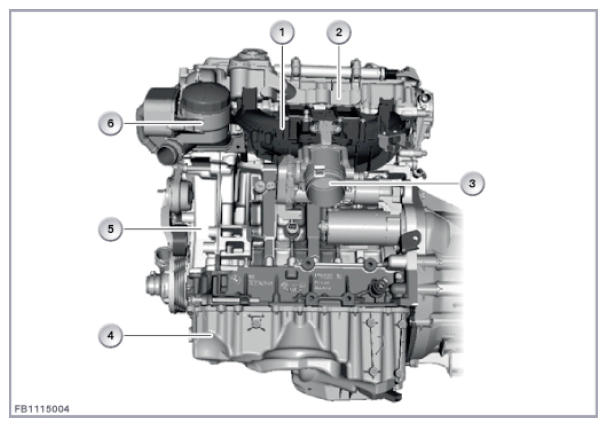

| Item | Description |
|---|---|
| 1 | Intake plenum |
| 2 | Cylinder head cover |
| 3 | Throttle body |
| 4 | Oil sump |
| 5 | Engine block |
| 6 | Oil filter housing |
