41 61... Checking Hinge For Engine Compartment Lid (For Vehicles With Active Pedestrian Protection System)

Necessary preliminary tasks:

• Remove hinge for engine compartment lid.

Open and close hinge (1).

Place hinge (1) on a level surface.

Check holes (2) for dimensional accuracy relative to support.

Dimension a=32 mm

Measurement b = 30 mm

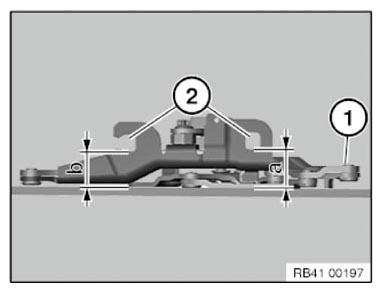

Fig 1: Identifying Hinge Level Surface
