Structure and inner electrical connection

The seat-position sensor has a 2-pin plug connection.

The airbag control unit supplies the seat-position sensor with voltage.

The seat-position sensor has a reverse polarity protection

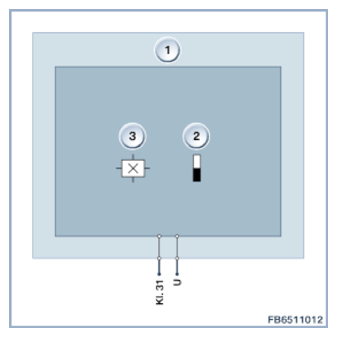

Fig 1: Seat-Position Sensor Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
