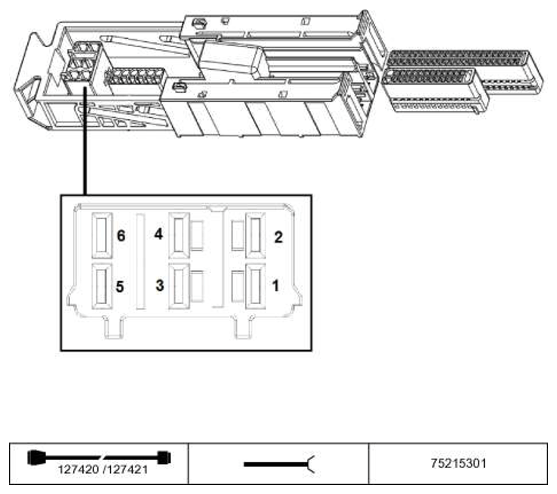

A6000 DME Control Module, Module 4 X60104 Connector End View
Pin Assignments At Plug Connector X60104
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation VANOS solenoid valve, intake | VANOS solenoid valve, intake |
| 2 | A | Activation VANOS solenoid valve, exhaust | VANOS solenoid valve, exhaust |
| 3 | A | Activation VANOS solenoid valve 2, intake | VANOS solenoid valve 2, intake |
| 4 | A | Activation VANOS solenoid valve 2, exhaust | VANOS solenoid valve 2, exhaust |
| 5 | A | Activation Electric oil pump | Electric oil pump |
| 6 | -- | Not occupied |
