Fuel Pressure Sensor
The fuel is supplied at a primary pressure of 5 bar by the electric fuel pump from the fuel tank via the supply line to the high pressure pump. The primary pressure is monitored by the fuel pressure sensor (5). The fuel is delivered by the electric fuel pump corresponding to engine requirements. The fuel pressure sensor known from the N54 and N63 is used.
In the event of the fuel pressure sensor failing, the electric fuel pump continues operation at 100% delivery rate as from terminal 15 ON.

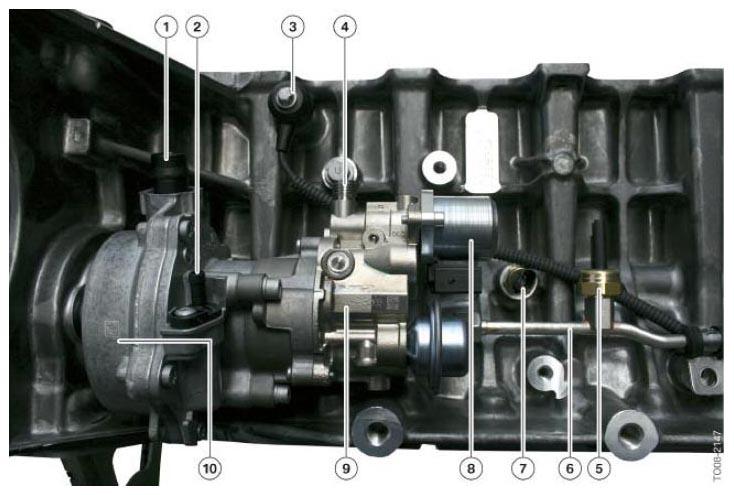

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Non-return valve for brake booster |
| 2 | Non-return valve for auxiliary consumers |
| 3 | Knock sensor |
| 4 | Connection, high pressure line to fuel rail |
| 5 | Fuel pressure sensor |
| 6 | Fuel supply line |
| 7 | Oil pressure sensor |
| 8 | Quantity control valve |
| 9 | High pressure pump |
| 10 | Vacuum pump |
