11.2. Front Lighting

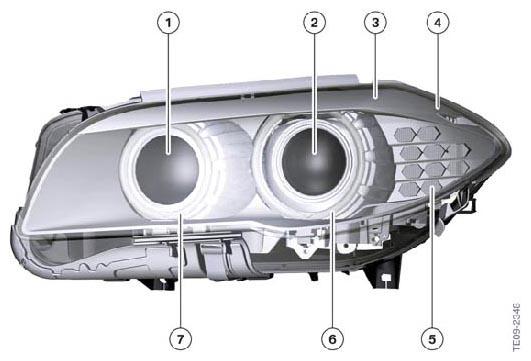

The structure of the front headlights can be seen in the following graphic.
EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Turning light (option 524, only available with bi-xenon) or high beam headlight with halogen headlights |
| 2 | Bi-xenon low-beam headlight/high beam headlight or low-beam headlight with halogen headlights |
| 3 | Decorative lighting (light-emitting diodes) |
| 4 | Side marker light (light-emitting diodes) |
| 5 | Turn indicator (light-emitting diodes with bi-xenon) |
| 6 | Parking light/daytime driving lights corona ring (light-emitting diodes, daytime driving light function only with bi-xenon) |
| 7 | Parking light/daytime driving lights corona ring (light-emitting diodes, daytime driving light function only with bi-xenon) |
