2.5. Controls on the steering wheel
There is a switch block in the steering wheel on the left and right.
The operating elements for cruise control with braking function (Dynamic Cruise Control DCC) and the Active Cruise Control ACC are located on the left side of the steering wheel.
The controls for operation of the radio and telephone functions are on the right.

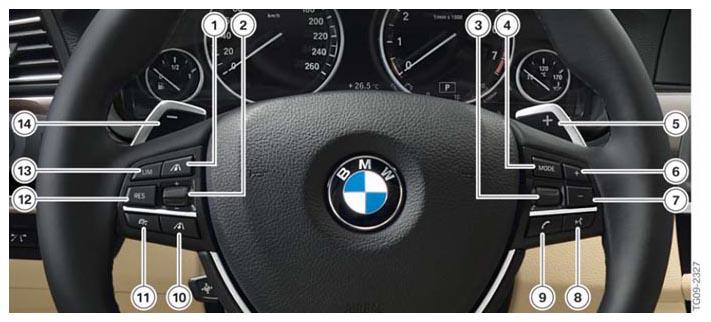

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Reduce distance button (only with option 5DF) |
| 2 | ± rocker switch, change speed, set speed |
| 3 | Knurled wheel, select/set radio station or music track |
| 4 | MODE button, switch audio sources |
| 5 | Shift up shift paddle (only with option 2TB) |
| 6 | + rocker switch, increase volume |
| 7 | -rocker switch, reduce volume |
| 8 | Voice control button |
| 9 | Telephone button |
| 10 | Increase distance button (only with option 5DF) |
| 11 | Switch on/off, interrupt ACC/DCC |
| 12 | Resume, call up stored speed button |
| 13 | Speed limit button or the "SET" speed button in the US |
| 14 | Shift down shift paddle (only with option 2TB) |
