SCR metering module injection pattern

The injection pattern of the metering module must consist of three evenly distributed circles. To check, hold a piece of crepe paper at a distance of 20-40 cm before the uncovered metering module. Activate the metering module with the diagnosis system.

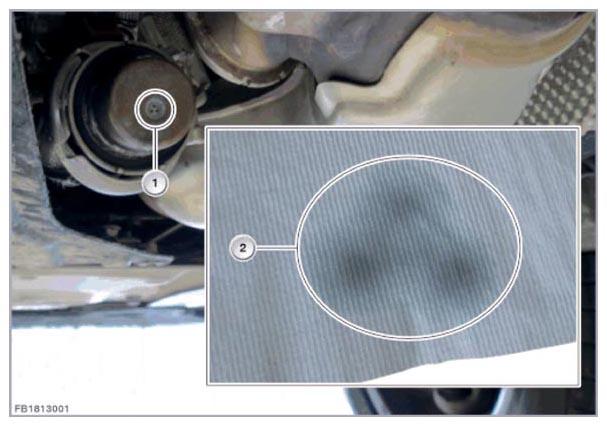

Fig 1: SCR Metering Module Injection Pattern

Courtesy of BMW OF NORTH AMERICA, INC.
