Engine Mechanical Tools (04 13 11)

Publication date: 2011-09-07
Reference number: 04 13 11

ENGINE MECHANICAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 13 11, Date of Issue: September 2011

BMW:	N20
GROUP:	Tools and Equipment

SUBJECT

Engine Mechanical Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

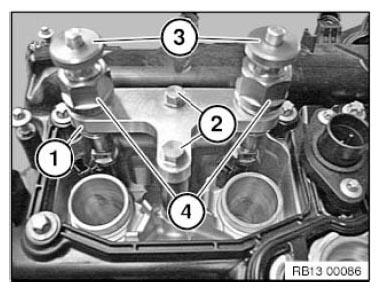

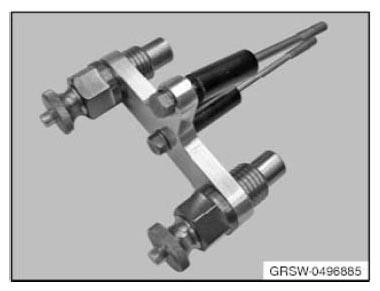

Injector Remover

Order P/N 83 30 0 496 885

NOTE: At the time of publication, stocking quantity of this tool is short. Tools will be sent out to centers when they arrive.

The injector remover is used to remove and install the fuel injectors.

Support bar
Fixing bolts
Injector locking screws
Locking screw height adjustment

For complete repair information on this tool, refer to ISTA Repair Manual section 13 53 310.

Read this repair manual section completely before using this device. Follow all precautions carefully.

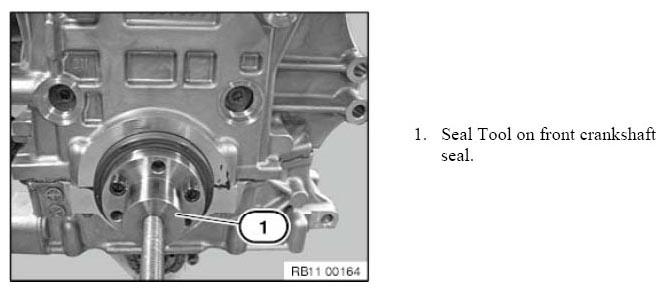

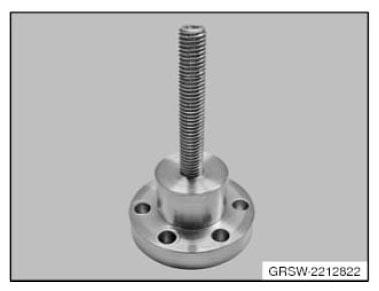

Seal Tool

Order P/N 83 30 2 212 822

This tool is used to install the front crankshaft seal.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 14 005.

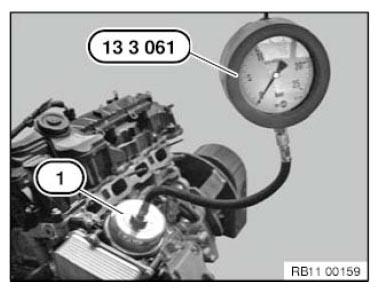

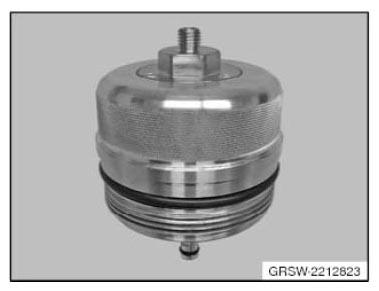

Oil Pressure Test Adapter Lid

Order P/N 83 30 2 212 823

The oil pressure test adapter lid (1) is used in conjunction with the 100-bar IMIB pressure transducer or pressure gauge 133 061 (part of kit 83 30 0 491 259) to measure the oil pressure at the oil filter housing. For complete details, refer to ISTA Repair Manual section 11 40 000.

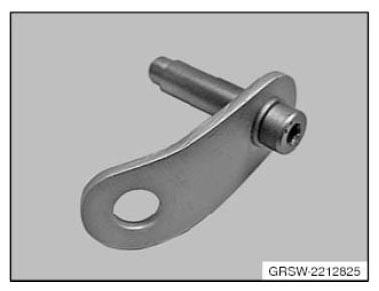

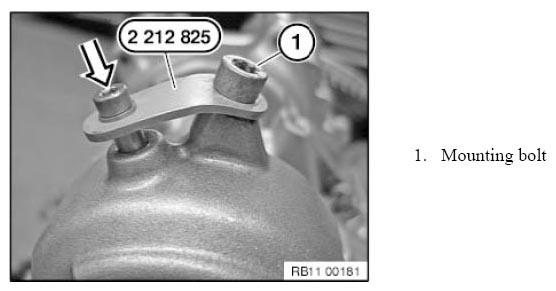

Locating Pin

Order P/N 83 30 2 212 825

NOTE: At the time of publication, stocking quantity of this tool is short. Tools will be sent out to centers when they arrive.

This tool is used to locate top dead center on the counterbalance shaft for the oil pump.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 41 000.

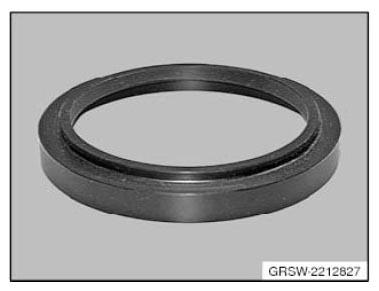

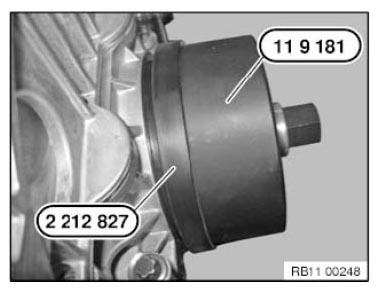

Seal Tool

Order P/N 83 30 2 212 827

This tool is used to install the rear crankshaft seal. The seal tool is used in conjunction with previously distributed seal installation tool 119 181 (119 180 - 83 30 0 493 881, B04 01 06 ).

For complete repair information on this tool, refer to ISTA Repair Manual section 11 14 1.

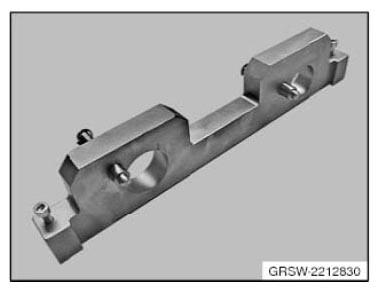

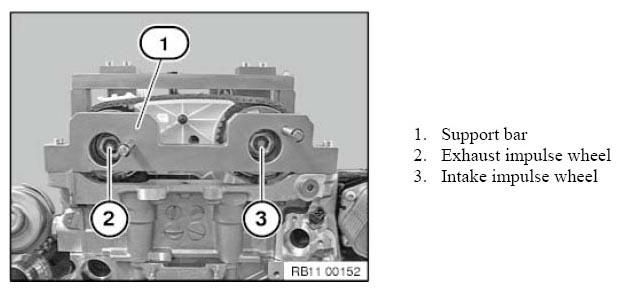

VANOS Locking Tool

Order P/N 83 30 2 212 830

This tool is used to fix the VANOS impulse wheel in top dead center position.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 36 046.

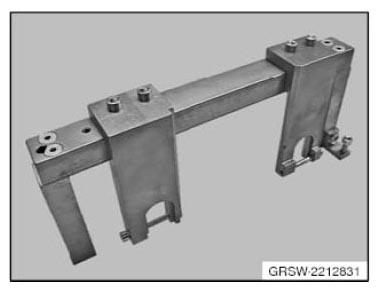

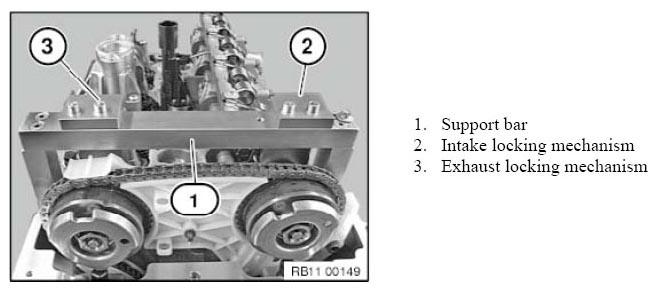

Camshaft Locking Tool

Order P/N 83 30 2 212 831

This tool is used to fix the camshaft in top dead center position.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 31 005.

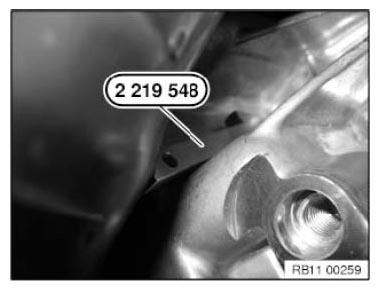

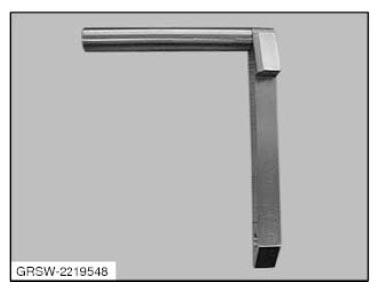

Alignment Pin

Order P/N 83 30 2 219 548

The alignment pin is used to fix the engine flywheel at top dead center.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 31 005.

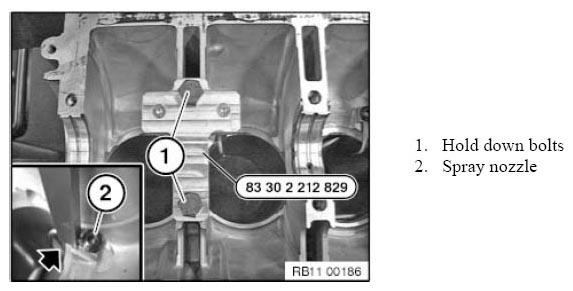

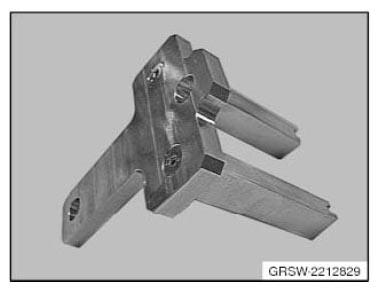

Oil Spray Nozzle Fixture

Order P/N 83 30 2 212 829

The oil spray nozzle fixture is used to properly position the crankcase oil spray nozzles.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 21 531.

Distribution of the following tools will not be through the Automatic Tool Shipment Program. Tools may be purchased through your Regional Distribution Center (RDC).

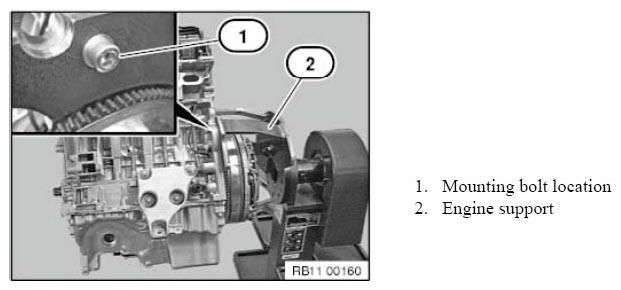

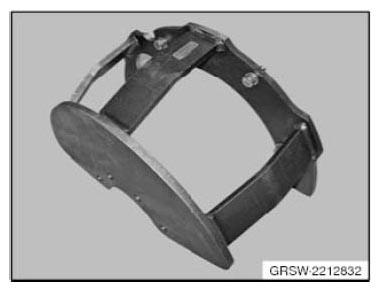

Engine Support

Order P/N 83 30 2 212 832

The engine support is used in conjunction with engine stand P/N 83 30 0 495 187 to support the engine for reworking.

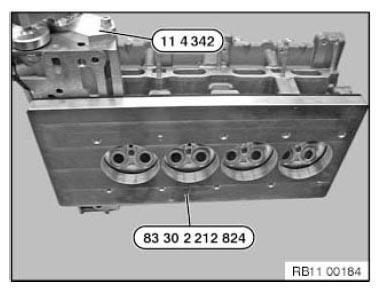

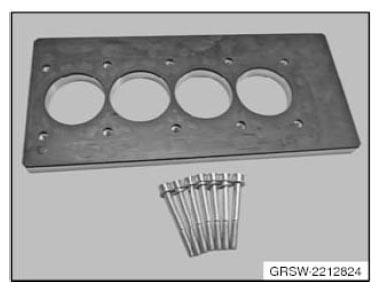

Pressure Fixture

Order P/N 83 30 2 212 824

The pressure fixture tool is used to check the engine cylinder head for leaks.

Used in conjunction with special tool 114 342.
114 342 part of 114 340 - 83 30 0 495 014, B04 07 05.

For complete repair information on this tool, refer to ISTA Repair Manual section 11 12 729.
