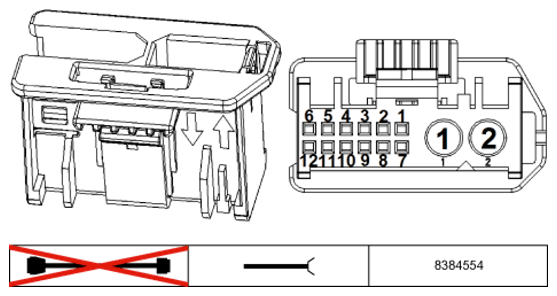

Video Module A25*1B Connector End View
Pin Assignments At Plug Connector A25*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30B | Fuse F125 |
| 2 | A | FBAS signal | Video switch with video switch |
| 2 | A | FBAS signal | Head unit without video switch |
| 3 | A | FBAS signal | Rear seat entertainment |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | M | Shielding | Head unit without video switch |
| 7 | M | Shielding | Video switch with video switch |
| 8 | A | FBAS signal | Head unit without video switch |
| 8 | A | FBAS signal | Video switch with video switch |
| 9 | A | FBAS signal | Rear seat entertainment |
| 10 | -- | Not used | |
| 11 | M | Shielding | Rear seat entertainment |
| 12 | M | Ground | Ground point |
