Fuel Pressure Test Lines (04 09 11)
Publication date: 2011-05-04Reference number: 04 09 11
FUEL PRESSURE TEST LINES
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B04 09 11, Date of Issue:
May 2011
| BMW: | N54, N55 |
| GROUP: | Tools and Equipment |
SUBJECT
Fuel Pressure Test Lines
SITUATION
Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

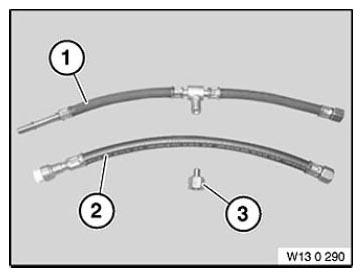

Fuel Pressure Test Lines
Order P/N 83 30 0 496 707
The fuel pressure test lines are used in conjunction with 114 310 (B04 07 10 ), the IMIB and the 100 bar pressure transducer, for checking fuel pressure on all direct injection engines.
NOTE:
Pressure gauge 133 060 may be used in place of the IMIB and 100 bar transducer.
For complete repair information on this tool, refer to Repair Manual section 13 31 032 for the N54.
