Structure and inner electrical connection

The blow-off valve is connected via a two-pin plug connection.

The blow-off valve is a solenoid valve. The blow-off valve is supplied with voltage via terminal 15N. Activation by the engine control occurs on the earth side.

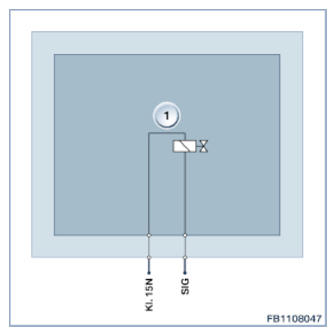

Fig 1: Diverter Valve - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
