31 00... Notes on repairing threads: Procedure

Create a clean core hole; if necessary, drill out screw remnants

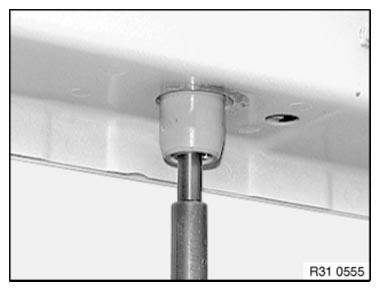

Fig 1: Drilling Clean Hole Core For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

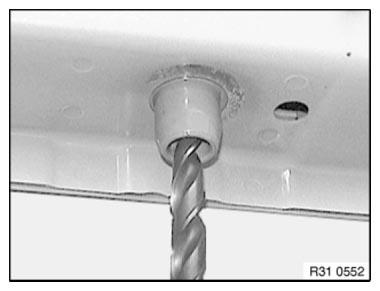

Fig 2: Creating Locating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

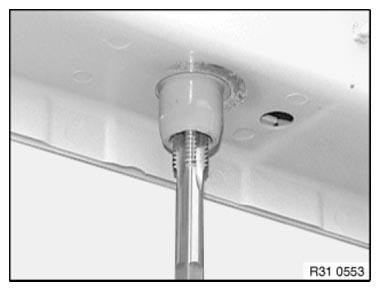

Fig 3: Finishing Threads Using External Threads
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

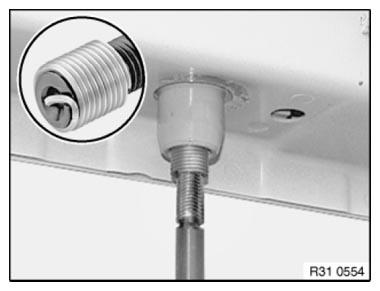

Fig 4: Removing Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
