11 00 Mounting Engine On Assembly Stand (N55)
Special Tools Required:
IMPORTANT:
Aluminum Screws/Bolts Must Be Replaced Each Time They Are Released
.
Aluminum Screws/Bolts Are Permitted with and Without Color Coding (Blue).
for Reliable Identification:
Aluminum Screws/Bolts Are Not Magnetic .
Joining Torque and Angle of Rotation Must Be Observed Without Fail (Risk of Damage) .
Aluminum Screws/Bolts Are Permitted with and Without Color Coding (Blue).
for Reliable Identification:
Aluminum Screws/Bolts Are Not Magnetic .
Joining Torque and Angle of Rotation Must Be Observed Without Fail (Risk of Damage) .
Necessary Preliminary Tasks:
- Remove ENGINE .

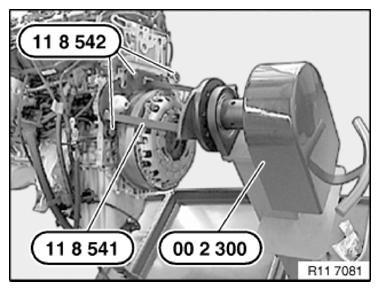

Use Special Tool 11 8 541 To Mount Engine On Special Tool 00 2 300 .
Mount Engine or Engine Block with Special Tool 11 8 542 On 11 8 541 .
