Full Load Diagram

In comparison with the predecessor, the N55 engine features lower fuel consumption with the same power output and torque data.

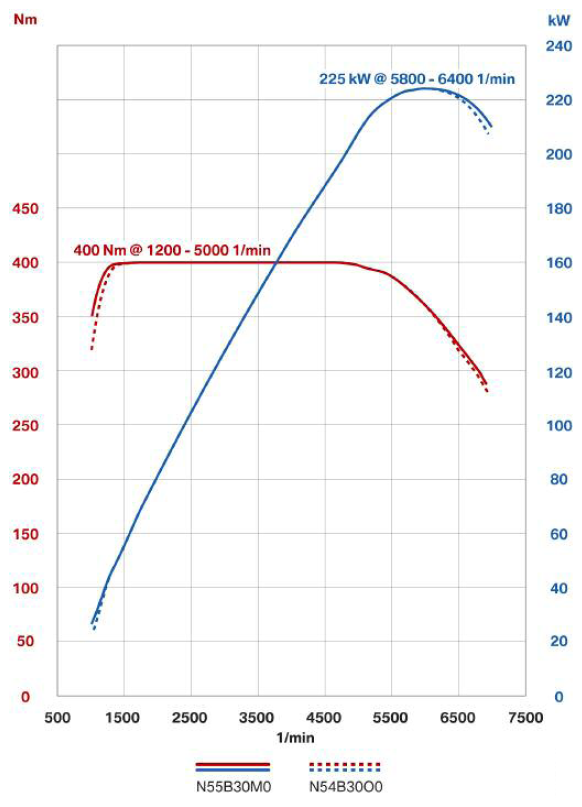

Fig 1: Full Load Graph

Courtesy of BMW OF NORTH AMERICA, INC.

Full load diagram for E90 335i with N54B30O0 engine in comparison with F07 535i Gran Turismo with N55B30M0 engine.
