Full Load Diagram

In comparison with the predecessor (N62) engine, the N63 engine features significantly higher overall power output and a more rounded torque curve.

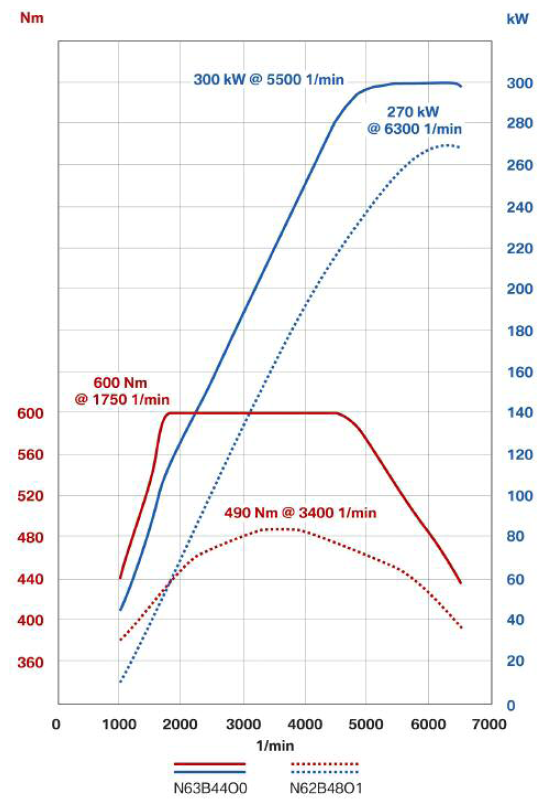

Fig 1: Full Load Graph

Courtesy of BMW OF NORTH AMERICA, INC.

Full load diagram for N62B48O1 engine in comparison with N63B44O0 engine.
