86 10... Disassembly of front protection bar: Installation

Use new self-locking nuts.

Tightening Torque,

86 10 4AZ

Tightening Torque,

86 10 5AZ

Fig 1: Identifying Screws On Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on longitudinal member (2).

Tightening Torque,

86 10 5AZ

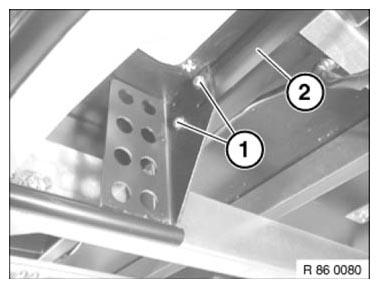

Fig 1: Identifying Screws On Longitudinal Member

Courtesy of BMW OF NORTH AMERICA, INC.
