8610 Loading Platform
›
86 10... Removing plastic bush/metal bush
86 10... Removing plastic bush/metal bush
Release countersunk metal screws (1).

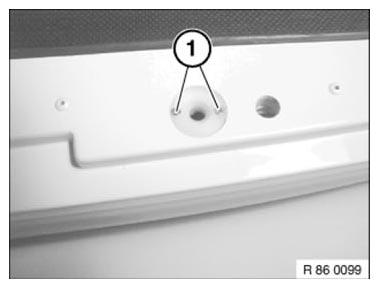

Fig 1: Identifying Countersunk Metal Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Lever out plastic bush/metal bush (1) with a screwdriver.

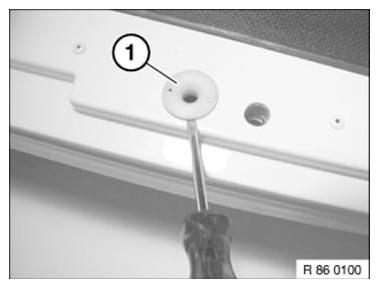

Fig 2: Removing Plastic Bush/Metal Bush With Screwdriver
Courtesy of BMW OF NORTH AMERICA, INC.
