86 10... Removing rear supports and bracket: Installation

Tightening Torque, 86 10 26AZ

Fig 1: Identifying Rear Support Of Bracket With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable holders (1) from bracket (2).

Release screws (3) on left and right sides of bracket (2). Drill out rivets (4) from underside of platform. Drill out rivets (5) from upper side of platform.

Tightening Torque, 86 10 27AZ

Fig 1: Identifying Bracket With Cable Holder, Screws And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable for rear light (1) through opening (2). Fit cable holders (4) in holes (3).

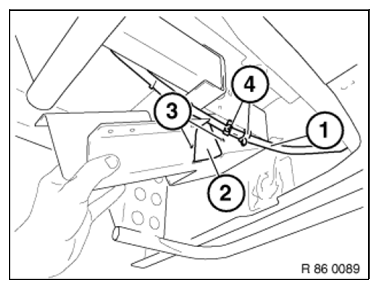

Fig 1: Identifying Rear Light And Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.
